RL,RS

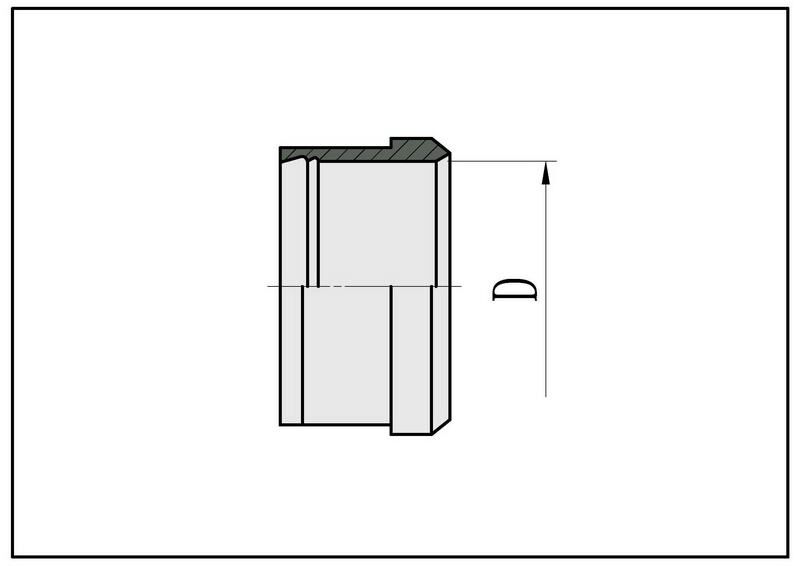

CUTTING RING

Material

carbon steel

Surface

CR3+ zinc plating

Application

carves into the outer surface of the tube hence ensuring the necessary holding power and sealing for high operating pressures.

Details about RL,RS

PART NO. D TUBE O.D. CUTTING RING
RL-06 6 LIGHT DUTY
RL-08 8
RL-10 10
RL-12 12
RL-15 15
RL-18 18
RL-22 22
RL-28 28
RL-35 35
RL-42 42
RS-06 6 HEAVY DUTY
RS-08 8
RS-10 10
RS-12 12
RS-14 14
RS-16 16
RS-20 20
RS-25 25
RS-30 30
RS-38 38

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
