NL,NS
RETAINING NUT
Material | carbon steel |
---|---|
Surface | CR3+ zinc plating |
Application | Thread connection |
Details about NL,NS

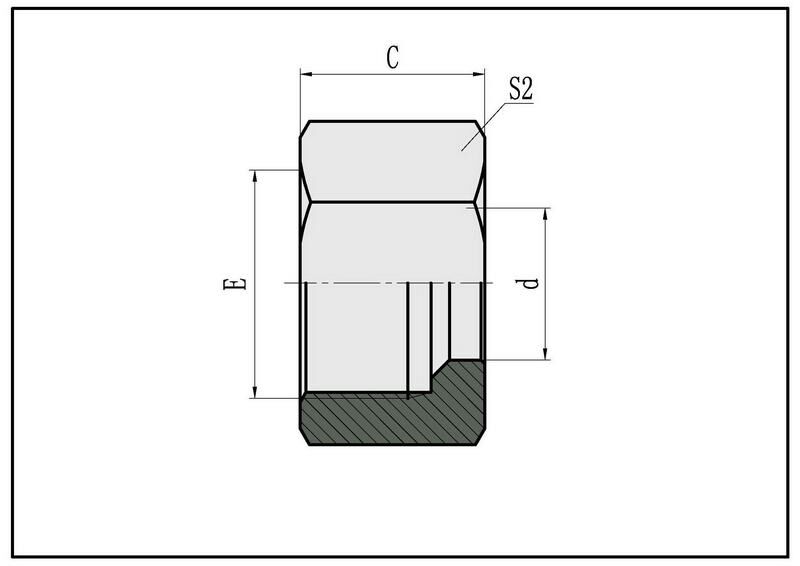

PART NO. | THREAD E | TUBE O.D. | RETAINING NUT L.T. LIGHT DUTY DIMENSIONS | |
C | S2 | |||
NL-12 | M12*1.5 | 6 | 14.5 | 14 |
NL-14 | M14*1.5 | 8 | 14.5 | 17 |
NL-16 | M16*1.5 | 10 | 15.5 | 19 |
NL-18 | M18*1.5 | 12 | 15.5 | 22 |
NL-22 | M22*1.5 | 15 | 17 | 27 |
NL-26 | M26*1.5 | 18 | 18 | 32 |
NL-30 | M30*2 | 22 | 20 | 36 |
NL-36 | M36*2 | 28 | 21 | 41 |
NL-45 | M45*2 | 35 | 24 | 50 |
NL-52 | M52*2 | 42 | 24 | 60 |
PART NO. | THREAD E | TUBE O.D. | RETAINING NUT H.T. HEAVY DUTY DIMENSIONS | |
C | S2 | |||
NS-14 | M14*1.5 | 6 | 16.5 | 17 |
NS-16 | M16*1.5 | 8 | 16.5 | 19 |
NS-18 | M18*1.5 | 10 | 17.5 | 22 |
NS-20 | M20*1.5 | 12 | 17.5 | 24 |
NS-22 | M22*1.5 | 14 | 20.5 | 27 |
NS-24 | M24*1.5 | 16 | 20.5 | 30 |
NS-30 | M30*2 | 20 | 24 | 36 |
NS-36 | M36*2 | 25 | 27 | 46 |
NS-42 | M42*2 | 30 | 29 | 50 |
NS-52 | M52*2 | 38 | 32.5 | 60 |
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
