00710 FERRULE FOR CORRUGATED PTFE HOSE
Ferrule for corrugated PTFE hose
Material | carbon steel |
---|---|
Surface | CR3+ zinc plating |
Application | Fix hose with coupling after crimping |

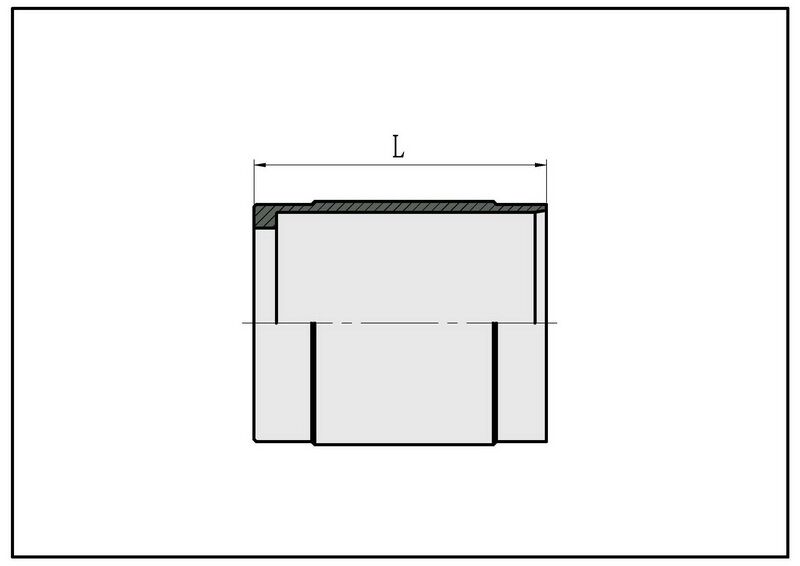

Details about 00710 FERRULE FOR CORRUGATED PTFE HOSE
PART NO. | HOSE BORE | DIMENSIONS | |
DN | DASH | L | |
00710-06 | 10 | 6 | 28.6 |
00710-08 | 12 | 8 | 30 |
00710-12 | 20 | 12 | 38 |
00710-16 | 25 | 16 | 45.9 |
00710-20 | 32 | 20 | 54 |
00710-24 | 40 | 24 | 57 |
00710-32 | 50 | 32 | 69.8 |
Application: Corrugated PTFE hose
HOSE PART NO. | HOSE I.D. | HOSE O.D. | FERRULE |
mm | mm | ||
PTFE9806 | 9.53 | 15.62 | 00710-06 |
PTFE9808 | 12.7 | 19.93 | 00710-08 |
PTFE9810 | 16 | 23.03 | 00710-10 |
PTFE9812 | 19.05 | 26.67 | 00710-12 |
PTFE9816 | 25.4 | 32.25 | 00710-16 |
PTFE9820 | 31.75 | 39.88 | 00710-20 |
PTFE9824 | 38.1 | 45.97 | 00710-24 |
PTFE9832 | 50.8 | 58.93 | 00710-32 |
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
