10511

CES METRIC MALE 24° CONE SEAT H.T.

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 10511

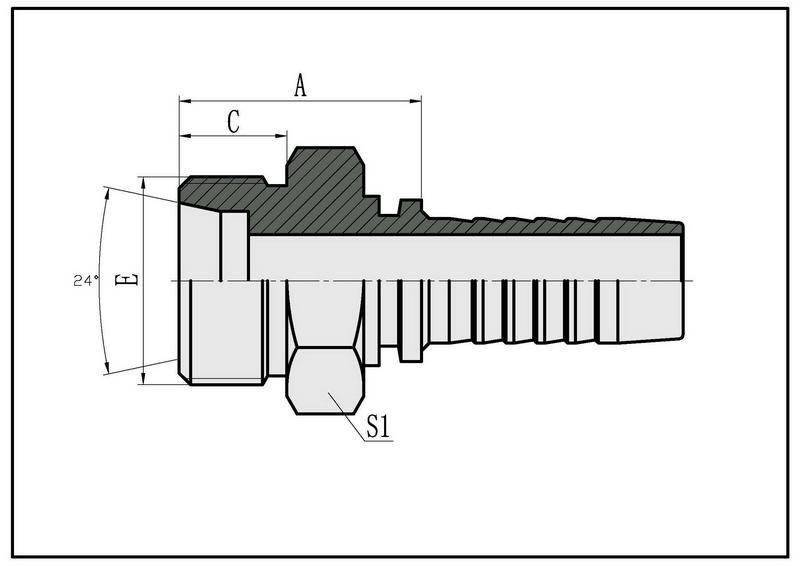

PART NO. THREAD E HOSE BORE DIMENSIONS
Braided hose Spiral hose DN DASH TUBE O.D. A C S1
10511-14-04 10512-14-04 M14*1.5 6 04 6 241 12 14
10511-16-04 10512-16-04 M16*1.5 6 04 8 26.5 12 17
10511-18-04 10512-18-04 M18*1.5 6 04 10 26.5 12 19
10511-20-05 10512-20-05 M20*1.5 8 05 12 27 12 22
10511-20-06 10512-20-06 M20*1.5 10 06 12 26.5 12 22
10511-22-05 10512-22-05 M22*1.5 8 05 14 30.5 14 24
10511-22-06 10512-22-06 M22*1.5 10 06 14 30.5 14 24
10511-22-08 10512-22-08 M22*1.5 12 08 14 31 14 24
10511-24-08 10512-24-08 M24*1.5 12 08 16 31.5 14 27
10511-30-10 10512-30-10 M30*2 16 10 20 36 16 32
10511-30-12 10512-30-12 M30*2 20 12 20 36 16 32
10511-36-12 10512-36-12 M36*2 20 12 25 40.5 18 41
10511-36-16 10512-36-16 M36*2 25 19 25 41.5 18 38
10511-42-16 10512-42-16 M42*2 25 19 30 44 20 46
10511-42-20 10512-42-20 M42*2 32 20 30 45 20 46
10511-52-20 10512-52-20 M52*2 32 20 38 50 22 55
