00110-A FERRULE FOR R1AT 1SN HOSE
Non-skive ferrule for SAE100 R1AT / EN 853 1SN hose
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Fix hose with coupling after crimping |

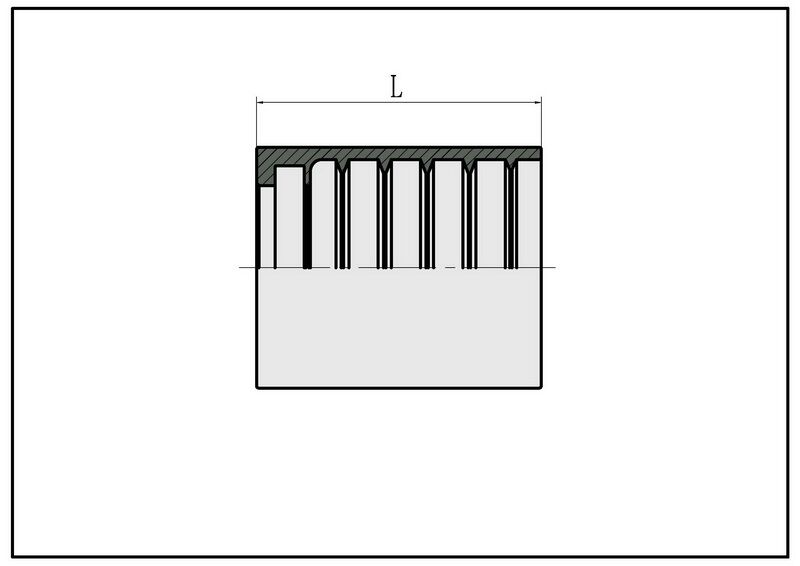

Details about 00110-A FERRULE FOR R1AT 1SN HOSE
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00110-03A | 5 | 3 | 23 |
| 00110-04A | 6 | 4 | 30.5 |
| 00110-05A | 8 | 5 | 30 |
| 00110-06A | 10 | 6 | 32 |
| 00110-08A | 12 | 8 | 34 |
| 00110-10A | 16 | 10 | 37 |
| 00110-12A | 20 | 12 | 42 |
| 00110-16A | 25 | 16 | 51 |
| 00110-20 | 32 | 20 | 59 |
| 00110-24 | 40 | 24 | 74 |
| 00110-32 | 50 | 32 | 78 |
Application: One Wire Braid Hose (SAE 100 R1AT) & (EN 853 1SN)
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
