20411

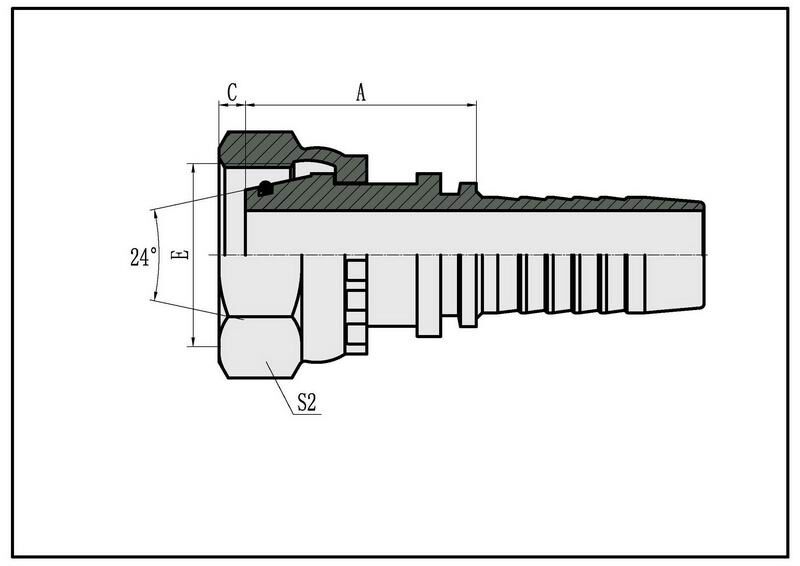

DKOL METRIC FEMALE
24° CONE O-RING L.T.

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 20411

PART NO. THREAD E HOSE BORE DIMENSIONS
Braided hose Spiral hose DN DASH TUBE O.D. O RING A C S2
20411-12-04 20412-12-04 M12*1.5 6 04 6 O04.5*1.5 26 1 17
20411-14-04 20412-14-04 M14*1.5 6 04 8 O06.5*1.5 27.5 2 19
20411-14-06 20412-14-06 M14*1.5 10 06 8 O06.5*1.5 27.5 2 19
20411-16-04 20412-16-04 M16*1.5 6 04 10 O08.0*1.5 28 2 22
20411-16-05 20412-16-05 M16*1.5 8 05 10 O08.0*1.5 28 2 22
20411-16-06 20412-16-06 M16*1.5 10 06 10 O08.0*1.5 28 2 22
20411-18-05T 20412-18-05T M18*1.5 8 05 12 O10.0*2.0 27.5 1.8 22
20411-18-06 20412-18-06 M18*1.5 10 06 12 O10.0*2.0 29 2.5 24
20411-18-08 20412-18-08 M18*1.5 12 08 12 O10.0*2.0 29.5 2.5 24
20411-22-05T 20412-22-05T M22*1.5 8 05 15 O12.0*2.0 29.5 2.1 27
20411-22-06T 20412-22-06T M22*1.5 10 06 15 O12.0*2.0 29 2.5 27
20411-22-08 20412-22-08 M22*1.5 12 08 15 O12.0*2.0 32 2.5 27
20411-26-10 20412-26-10 M26*1.5 16 10 18 O15.0*2.0 35 2.5 32
20411-26-12 20412-26-12 M26*1.5 20 12 18 O15.0*2.0 35 2.5 32
20411-27-10T 20412-27-10T M27*1.5 16 10 18 O15.0*2.0 28 2.5 32
20411-27-12 20412-27-12 M27*1.5 20 12 18 O15.0*2.0 35 2.5 32
20411-30-10T 20412-30-10T M30*2 16 10 22 O20.0*2.0 35 4 36
20411-30-12 20412-30-12 M30*2 20 12 22 O20.0*2.0 38 4 36
20411-36-12T 20412-36-12T M36*2 20 12 28 O26.0*2.0 35 4 41
20411-36-14T 20412-36-14T M36*2 22 14 28 O26.0*2.0 36 4 41
20411-45-16T 20412-45-16T M45*2 25 16 35 O32.0*2.5 41 5 55
20411-45-20T 20412-45-20T M45*2 32 20 35 O32.0*2.5 42 5 55
20411-52-20T 20412-52-20T M52*2 32 20 42 O38.0*2.5 44 5.5 60
20411-52-24T 20412-52-24T M52*2 40 24 42 O38.0*2.5 44 5.5 60

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
