- 00200 FERRULE FOR R2A 2ST HOSE
00200 FERRULE FOR R2A 2ST HOSE
Outside skive ferrule for SAE 100 R2A / DIN 20022 2ST hose
Material | carbon steel |
---|---|
Surface | CR3+ zinc plating |
Application | Fix hose with coupling after crimping |

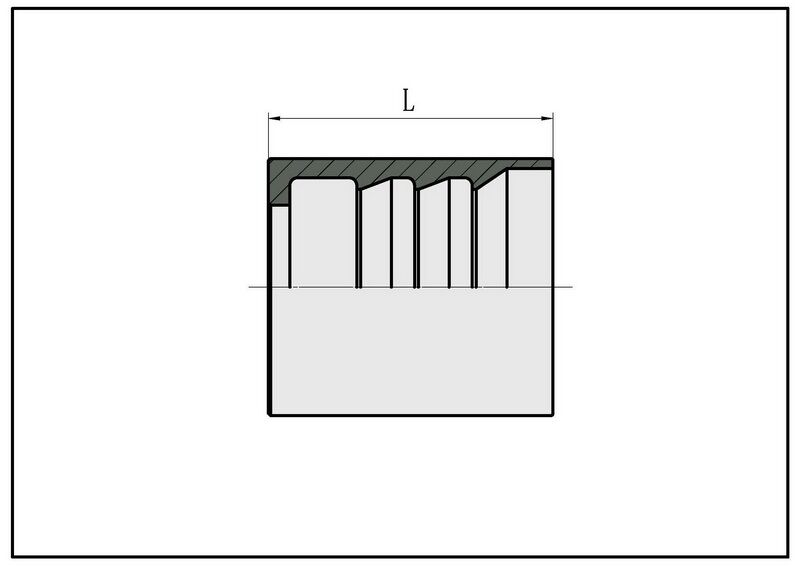

Details about 00200 FERRULE FOR R2A 2ST HOSE
PART NO. | HOSE BORE | DIMENSIONS | |
DN | DASH | L | |
00200-03 | 5 | 3 | 27 |
00200-04 | 6 | 4 | 30 |
00200-05 | 8 | 5 | 31 |
00200-06 | 10 | 6 | 32 |
00200-08 | 12 | 8 | 34 |
00200-10 | 16 | 10 | 37 |
00200-12 | 20 | 12 | 43 |
00200-16 | 25 | 16 | 50 |
00200-20 | 32 | 20 | 59 |
00200-24 | 40 | 24 | 74 |
00200-32 | 50 | 32 | 78 |
Application: Two Wires Braid Hose SAE 100 R2A / DIN 20022 2ST
HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | FERRULE | |
mm | DASH | in | mm | mm | OUTSIDE SKIVE | |
2A03 / 2ST03 | 5 | -03 | 3/16 | 4.8 | 15.8 | 00200-03 |
2A04 / 2ST04 | 6 | -04 | 1/4 | 6.4 | 17.5 | 00200-04 |
2A05 / 2ST05 | 8 | -05 | 5/16 | 7.9 | 19.1 | 00200-05 |
2A06 / 2ST06 | 10 | -06 | 3/8 | 9.5 | 21.5 | 00200-06 |
2A08 / 2ST08 | 12 | -08 | 1/2 | 12.7 | 24.7 | 00200-08 |
2A10 / 2ST10 | 16 | -10 | 5/8 | 15.9 | 27.8 | 00200-10 |
2A12 / 2ST12 | 20 | -12 | 3/4 | 19 | 31.8 | 00200-12 |
2A16 / 2ST16 | 25 | -16 | 1 | 25.4 | 39.7 | 00200-16 |
2A20 / 2ST20 | 32 | -20 | 1.1/4 | 31.8 | 50.8 | 00200-20 |
2A24 / 2ST24 | 40 | -24 | 1.1/2 | 38.1 | 57.2 | 00200-24 |
2A32 / 2ST32 | 50 | -32 | 2 | 50.8 | 69.7 | 00200-32 |
