00018 FERRULE FOR R7 HOSE

Non-skive ferrule for SAE 100 R7 hose

Material

carbon steel

Surface

CR3+ zinc plating

Application

Fix hose with coupling after crimping

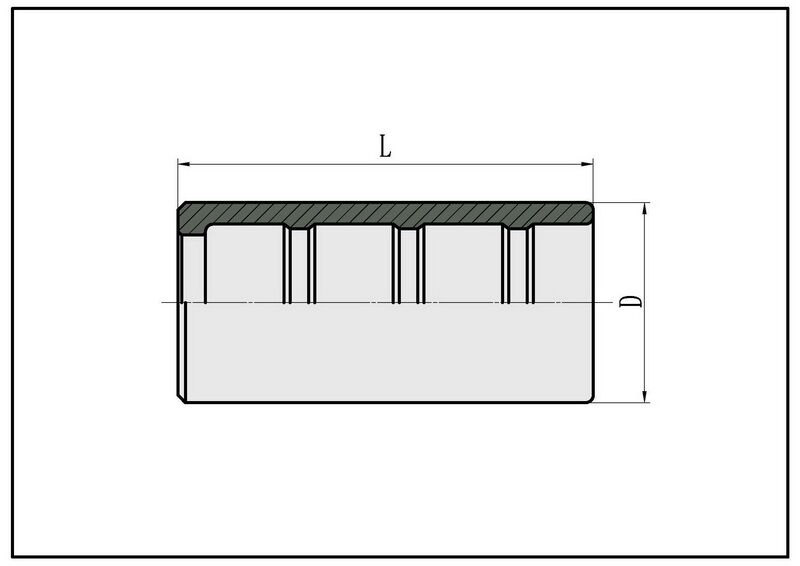

Details about 00018 FERRULE FOR R7 HOSE

  PART NO.   HOSE BORE   DIMENSIONS
  DN   DASH D L
00018-03 5 3 14.2 27
00018-04 6 4 17 29
00018-05 8 5 18.8 31
00018-06 10 6 21 31
00018-08 12 8 25.5 34
00018-10 16 10 31.5 36
00018-12 20 12 33 43
00018-16 25 16 41.5 50



Application: Two Polyester Braid  hose(SAE 100 R7-EN 855 R7)

00018 match Two Polyester Braid hose R7

HOSE PART NO. DN  HOSE SIZE HOSE I.D. HOSE O.D.  FERRULE
mm DASH in mm mm NON SKIVE
R703 5 -03 3/16 4.8 10.3 00018-03
R704 6 -04 1/4 6.3 12.7 00018-04
R705 8 -05 5/16 7.9 14.3 00018-05
R706 10 -06 3/8 9.6 15.9 00018-06
R708 12 -08 1/2 12.8 19.8 00018-08
R710 16 -10 5/8 15.9 23.3 00018-10
R712 19 -12 3/4 18.9 26.5 00018-12
R716 25 -16 1 25.4 34 00018-16

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
