CB

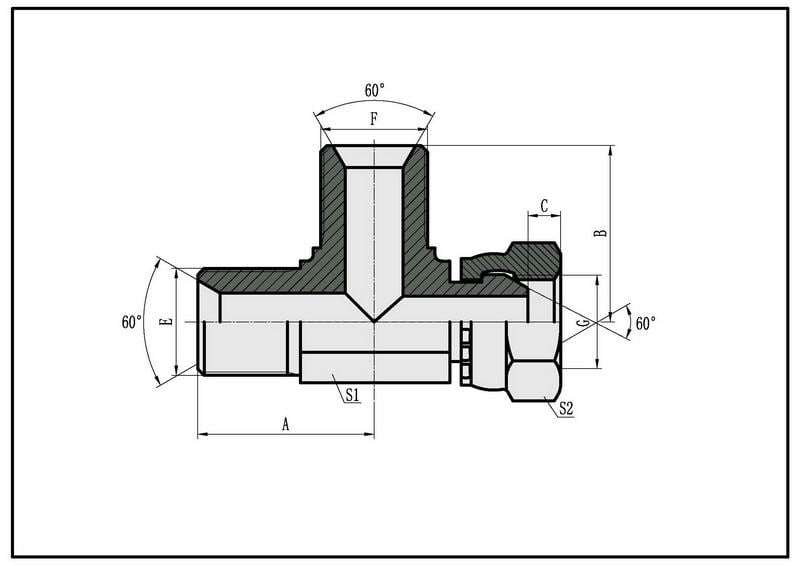

BSP MALE 60° SEAT / BSP FEMALE 60° CONE RUN TEE

Material

carbon steel

Surface

CR3+ zinc plating

Application

Connector for fittings and tubes

Details about CB

PART NO.  THREAD  DIMENSIONS
E F G A B C S1 S2
CB-02 G1/8″*28 G1/8″*28 G1/8″*28 19.8 19.8 5.5 11 14
CB-04 G1/4″*19 G1/4″*19 G1/4″*19 24.5 24.5 5.5 14 19
CB-06 G3/8″*19 G3/8″*19 G3/8″*19 27.5 27.5 6.3 16 22
CB-08 G1/2″*14 G1/2″*14 G1/2″*14 34.5 34.5 7.5 22 27
CB-10 G5/8″*14 G5/8″*14 G5/8″*14 34.5 34.5 9.5 22 30
CB-12 G3/4″*14 G3/4″*14 G3/4″*14 40 40 10.9 27 32
CB-16 G1″*11 G1″*11 G1″*11 46 46 11.7 33 41
CB-20 G1.1/4″*11 G1.1/4″*11 G1.1/4″*11 50.5 50.5 11 41 50
CB-24 G1.1/2″*11 G1.1/2″*11 G1.1/2″*11 57.5 57.5 13 48 55
CB-32 G2″*11 G2″*11 G2″*11 72.5 72.5 16 63 70

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
