2C,2D

STRAIGHT ADAPTER METRIC MALE 24° CONE / FEMALE 24° CONE

Material

carbon steel
Surface

CR3+ zinc plating
Application

Connector for fittings and tubes

Details about 2C,2D

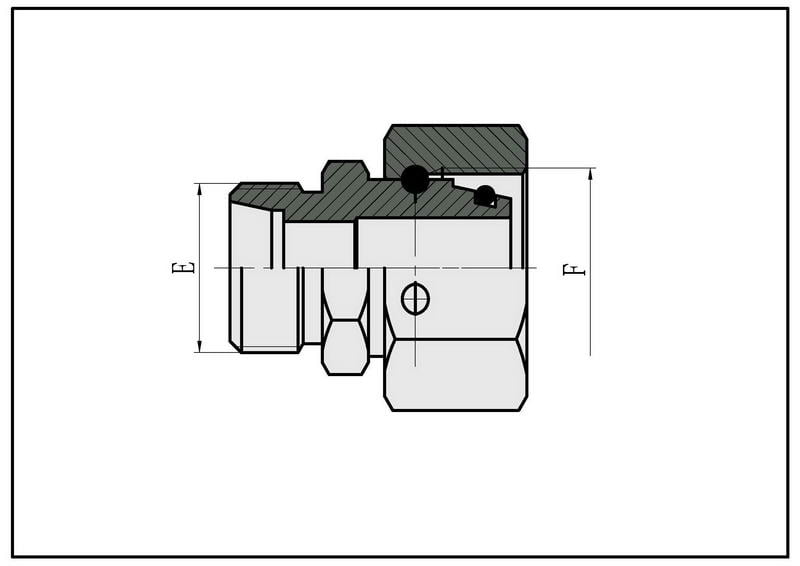

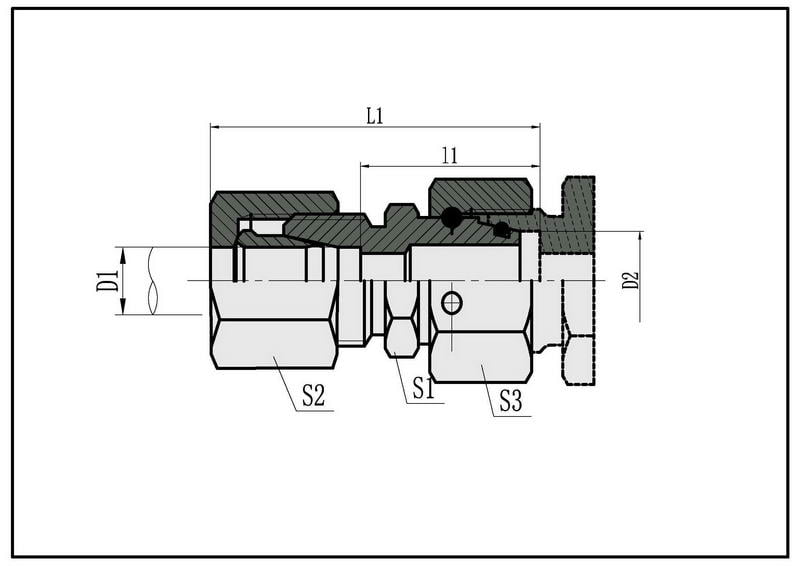

PART NO.  THREAD TUBE O.D.  DIMENSIONS MPa
E F D1 D2 L1 I1 S1 S2 S3
2C-12-14 M12*1.5 M14*1.5 6 8 23.5 38 12 14 17 31.5
2C-12-16 M12*1.5 M16*1.5 6 10 25 40 14 14 19
2C-14-16 M14*1.5 M16*1.5 8 10 25 40 14 17 19
2C-12-18 M12*1.5 M18*1.5 6 12 25 40 17 14 22
2C-14-18 M14*1.5 M18*1.5 8 12 25 40 17 17 22
2C-16-18 M16*1.5 M18*1.5 10 12 26 41 17 19 22
2C-12-22 M12*1.5 M22*1.5 6 15 28.5 43 19 14 27
2C-14-22 M14*1.5 M22*1.5 8 15 28.5 43 19 17 27
2C-16-22 M16*1.5 M22*1.5 10 15 29.5 44 19 19 27
2C-18-22 M18*1.5 M22*1.5 12 15 29.5 44 19 22 27
2C-12-26 M12*1.5 M26*1.5 6 18 28 43 24 14 32
2C-14-26 M14*1.5 M26*1.5 8 18 28 43 24 17 32
2C-16-26 M16*1.5 M26*1.5 10 18 29 44 24 19 32
2C-18-26 M18*1.5 M26*1.5 12 18 29 44 24 22 32
2C-22-26 M22*1.5 M26*1.5 15 18 30 45 24 27 32
2C-12-30 M12*1.5 M30*2 6 22 32 47 27 14 36 16
2C-14-30 M14*1.5 M30*2 8 22 32 47 27 17 36
2C-16-30 M16*1.5 M30*2 10 22 33 48 27 19 36
2C-18-30 M18*1.5 M30*2 12 22 33 48 27 22 36
2C-22-30 M22*1.5 M30*2 15 22 34 49 27 27 36
2C-26-30 M26*1.5 M30*2 18 22 33.5 50 27 32 36
2C-12-36 M12*1.5 M36*2 6 28 34 49 36 14 41
2C-14-36 M14*1.5 M36*2 8 28 34 49 36 17 41
2C-16-36 M16*1.5 M36*2 10 28 35 50 36 19 41
2C-18-36 M18*1.5 M36*2 12 28 35 50 36 22 41
2C-22-36 M22*1.5 M36*2 15 28 36 51 36 27 41
2C-26-36 M26*1.5 M36*2 18 28 35.5 52 36 32 41
2C-30-36 M30*2 M36*2 22 28 37.5 54 36 36 41
2C-12-45 M12*1.5 M45*2 6 35 37 52 41 14 50
2C-14-45 M14*1.5 M45*2 8 35 37 52 41 17 50
2C-16-45 M16*1.5 M45*2 10 35 38 53 41 19 50
2C-18-45 M18*1.5 M45*2 12 35 38 53 41 22 50
2C-22-45 M22*1.5 M45*2 15 35 39 54 41 27 50
2C-26-45 M26*1.5 M45*2 18 35 38.5 55 41 32 50
2C-30-45 M30*2 M45*2 22 35 40.5 57 41 36 50
2C-36-45 M36*2 M45*2 28 35 40.5 57 41 41 50
2C-12-52 M12*1.5 M52*2 6 42 40.5 55 50 14 60
2C-14-52 M14*1.5 M52*2 8 42 40.5 55 50 17 60
2C-16-52 M16*1.5 M52*2 10 42 41.5 56 50 19 60
2C-18-52 M18*1.5 M52*2 12 42 41.5 56 50 22 60
2C-22-52 M22*1.5 M52*2 15 42 42.5 58 50 27 60
2C-26-52 M26*1.5 M52*2 18 42 42 58 50 32 60
2C-30-52 M30*2 M52*2 22 42 44 60 50 36 60
2C-36-52 M36*2 M52*2 28 42 44 61 50 41 60
2C-45-52 M45*2 M52*2 35 42 43 65 50 50 60
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix “RN” after our part NO., for example 2C-30-52RN.



PART NO.  THREAD TUBE O.D.  DIMENSIONS MPa
E F D1 D2 L1 I1 S1 S2 S3
2D-14-16 M14*1.5 M16*1.5 6 8 27 42 14 17 19 63 S
2D-14-18 M14*1.5 M18*1.5 6 10 28 42 17 17 22
2D-16-18 M16*1.5 M18*1.5 8 10 28 42 17 19 22
2D-14-20 M14*1.5 M20*1.5 6 12 29 44 17 17 24
2D-16-20 M16*1.5 M20*1.5 8 12 29 44 17 19 24
2D-18-20 M18*1.5 M20*1.5 10 12 31 46 19 22 24
2D-14-22 M14*1.5 M22*1.5 6 14 32 46 19 17 27
2D-16-22 M16*1.5 M22*1.5 8 14 32 46 19 19 27
2D-18-22 M18*1.5 M22*1.5 10 14 31 47 19 22 27
2D-20-22 M20*1.5 M22*1.5 12 14 31 47 22 24 27
2D-14-24 M14*1.5 M24*1.5 6 16 32 47 22 17 30 40 S
2D-16-24 M16*1.5 M24*1.5 8 16 32 47 22 19 30
2D-18-24 M18*1.5 M24*1.5 10 16 32 48 22 22 30
2D-20-24 M20*1.5 M24*1.5 12 16 34 50 22 24 30
2D-22-24 M22*1.5 M24*1.5 14 16 33 51 27 27 30
2D-14-30 M14*1.5 M30*2 6 20 36 51 27 17 36
2D-16-30 M16*1.5 M30*2 8 20 36 51 27 19 36
2D-18-30 M18*1.5 M30*2 10 20 36 52 27 22 36
2D-20-30 M20*1.5 M30*2 12 20 36 52 27 24 36
2D-22-30 M22*1.5 M30*2 14 20 37 55 27 27 36
2D-24-30 M24*1.5 M30*2 16 20 38 55 30 30 36
2D-14-36 M14*1.5 M36*2 6 25 39 53 36 17 46
2D-16-36 M16*1.5 M36*2 8 25 39 53 36 19 46
2D-18-36 M18*1.5 M36*2 10 25 38 54 36 22 46
2D-20-36 M20*1.5 M36*2 12 25 38 54 36 24 46
2D-22-36 M22*1.5 M36*2 14 25 40 57 36 27 46
2D-24-36 M24*1.5 M36*2 16 25 39 57 36 30 46
2D-30-36 M30*2 M36*2 20 25 39 61 36 36 41
2D-14-42 M14*1.5 M42*2 6 30 44 59 41 17 50
2D-16-42 M16*1.5 M42*2 8 30 44 59 41 19 50
2D-18-42 M18*1.5 M42*2 10 30 44 60 41 22 50
2D-20-42 M20*1.5 M42*2 12 30 44 60 41 24 50
2D-22-42 M22*1.5 M42*2 14 30 45 63 41 27 50
2D-24-42 M24*1.5 M42*2 16 30 45 63 41 30 50
2D-30-42 M30*2 M42*2 20 30 45 66 41 36 50
2D-36-42 M36*2 M42*2 25 30 44 69 41 46 50
2D-14-52 M14*1.5 M52*2 6 38 48 62 50 17 60 31.5 S
2D-16-52 M16*1.5 M52*2 8 38 48 62 50 19 60
2D-18-52 M18*1.5 M52*2 10 38 47 63 50 22 60
2D-20-52 M20*1.5 M52*2 12 38 47 63 50 24 60
2D-22-52 M22*1.5 M52*2 14 38 49 66 50 27 60
2D-24-52 M24*1.5 M52*2 16 38 48 66 50 30 60
2D-30-52 M30*2 M52*2 20 38 48 70 50 36 60
2D-36-52 M36*2 M52*2 25 38 49 73 50 16 60
2D-42-52 M45*2 M52*2 30 38 48 76 50 50 60
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix “RN” after our part NO., for example 2D-30-52RN.
