20541CY
DKF 45° ONE PIECE METRIC FEMALE MUISEAL H.T
Material | carbon steel |
---|---|
Surface | CR3+ zinc plating |
Application | coupling for braid or spiral hoses |
Details about 20541CY

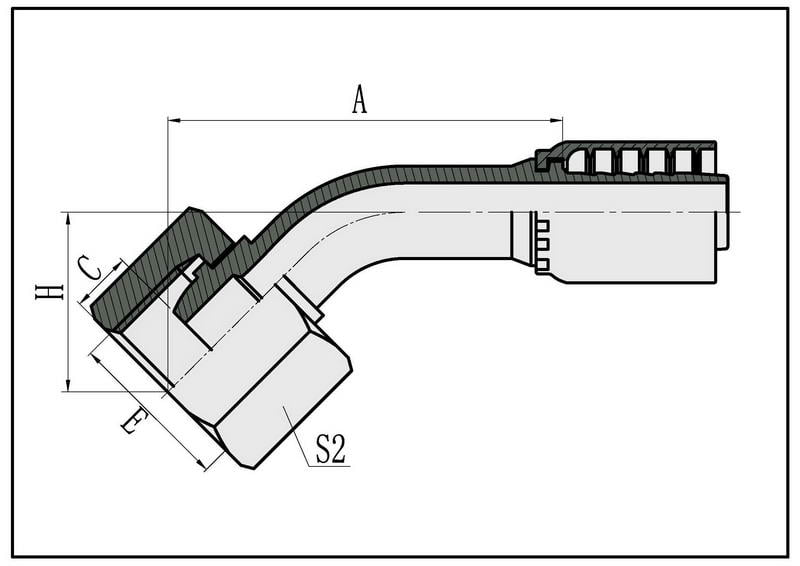

PART NO. | HOSE BORE | DIMENSIONS | ||||||||
BRAIDED HOSE | SPIRAL HOSE | THREAD E | DN | DASH | TUBE O.D. | A | C | H | S2 | |
20541CY-16-04TZ | – | M16x1.5 | 6 | 4 | 8 | 37.4 | 3.5 | 15.3 | 19 | |
20541CY-18-04TZ | – | M18x1.5 | 6 | 4 | 10 | 38.1 | 3 | 16 | 22 | |
20541CY-20-06TZ | 20542CY-20-06TZ | M20x1.5 | 10 | 6 | 12 | 41.6 | 4.5 | 17.6 | 24 | |
20491CY-24-08Z | 20542CY-24-08TZ | M24x1.5 | 12 | 8 | 16 | 47.7 | 5 | 21.5 | 30 | |
Note: | ||||||||||
1. The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose. |
