10411Y

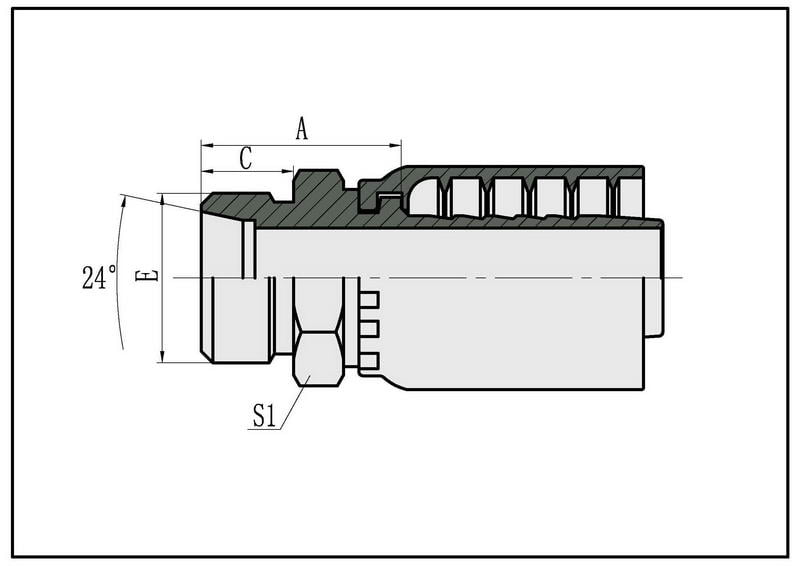

CEL ONE PIECE METRIC MALE 24°CONE SEAT L.T.

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 10411Y

 PART NO. HOSE   BORE   DIMENSIONS
BRAIDED HOSE SPIRAL HOSE THREAD E DN DASH TUBE  O.D. A C S1
10411Y-12-04Z M12x1.5 6 4 6 20.5 10 12
10411Y-14-04Z M14x1.5 6 4 8 20.5 10 14
10411Y-14-05Z M14x1.5 8 5 8 21.5 10 14
10411Y-16-04Z M16x1.5 6 4 10 22.5 11 17
10411Y-16-05Z M16x1.5 8 5 10 22.5 11 17
10411Y-16-06Z 10412Y-16-06Z M16x1.5 10 6 10 22.5 11 17
10411Y-18-05Z M18x1.5 8 5 12 23.5 11 19
10411Y-18-06Z 10412Y-18-06Z M18x1.5 10 6 12 22.5 11 19
10411Y-22-06Z 10412Y-22-06Z M22x1.5 10 6 15 24.5 12 24
10411Y-22-08Z 10412Y-22-08Z M22x1.5 12 8 15 26 12 24
10411Y-26-08Z 10412Y-26-08Z M26x1.5 12 8 18 26.5 12 27
10411Y-26-10Z 10412Y-26-10Z M26x1.5 16 10 18 26.5 12 27
10411Y-27-10Z 10412Y-27-10Z M27x1.5 16 10 18 29.5 14 30
10411Y-30-10Z 10412Y-30-10Z M30x2 16 10 22 29.5 14 32
10411Y-30-12Z 10412Y-30-12Z M30x2 20 12 22 30 14 32
10411Y-36-16Z 10412Y-36-16Z M36x2 25 16 28 31.5 14 38
10411Y-45-20Z 10412Y-45-20Z M45x2 32 20 35 37/39.1 16 46
10411Y-52-24Z 10412Y-52-24Z M52x2 40 24 42 38/41 16 55
Note:
1. The dimension before /for A is suitable for braided hose and the dimension after /for A is suitable for spiral hose.
