20511CY

DKF ONE PIECE METRIC FEMALE 24°MUISEAL H.T

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

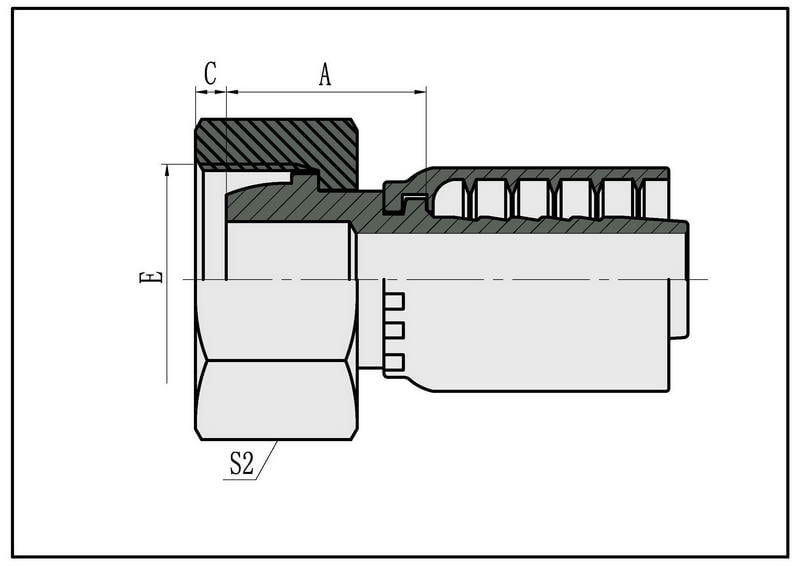

Details about 20511CY

 PART NO. HOSE   BORE   DIMENSIONS
BRAIDED HOSE SPIRAL HOSE THREAD E DN DASH TUBE O.D. A C S2
20511CY-18-04TZ M18x1.5 6 4 10 21 3 22
20511CY-20-05TZ M20x1.5 8 5 12 21.5 4.5 24
20511CY-20-06TZ 20512CY-20-06TZ M20x1.5 10 6 12 21.5 4.5 24
20511CY-22-06TZ 20512CY-22-06TZ M22x1.5 10 6 14 21.5 4.5 27
20511CY-24-08TZ 20512CY-24-08TZ M24x1.5 12 8 16 23 5 30
20511CY-30-10TZ 20512CY-30-10TZ M30x2 16 10 20 26.5 7 36
20511CY-36-12TZ 20512CY-36-12TZ M36x2 20 12 25 27 6.5 41
20511CY-42-16TZ 20512CY-42-16TZ M42x2 25 16 30 29.5 9 50
20511CY-52-20TZ 20512CY-52-20TZ M52x2 32 20 38 34/36.1 8 60
Note:
1. The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose.

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
