1JG

STRAIGHT ADAPTER JIC MALE 74° CONE / BSP MALE O-RING

Material

carbon steel

Surface

CR3+ zinc plating

Application

Connector for fittings and tubes

Details about 1JG

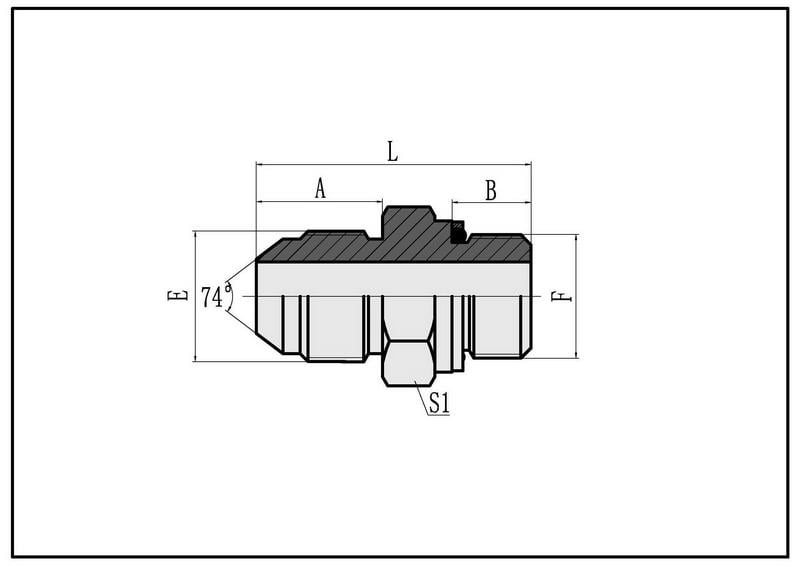

PART NO.  THREAD O-RING  DIMENSIONS
E F F A B S1 S2
1JG-04-02 7/16″*20 G1/8″*28 O011 14 9.5 31 14
1JG-04 7/16″*20 G1/4″*19 O111 14 10 32.5 19
1JG-04-06 7/16″*20 G3/8″*19 O113 14 11.5 34 22
1JG-04-08 7/16″*20 G1/2″*14 O115 14 14 39 27
1JG-05-04 1/2″*20 G1/4″*19 O111 14 10 33 19
1JG-05-06 1/2″*20 G3/8″*19 O113 14 11.5 36 22
1JG-05-08 1/2″*20 G1/2″*14 O115 14 14 39 27
1JG-06-04 9/16”*18 G1/4″*19 O111 14.1 11 31.5 19
1JG-06 9/16”*18 G3/8″*19 O113 14.1 11.5 34 22
1JG-06-08 9/16”*18 G1/2″*14 O115 14.1 14 39 27
1JG-08-04 3/4″*16 G1/4″*19 O111 16.7 10 36 22
1JG-08-06 3/4″*16 G3/8″*19 O113 16.7 11.5 37 22
1JG-08 3/4″*16 G1/2″*14 O115 16.7 14 42 27
1JG-08-12 3/4″*16 G3/4″*14 O119 16.7 15.5 44 32
1JG-10-06 7/8″*14 G3/8″*19 O113 19.3 11.5 39.5 24
1JG-10-08 7/8″*14 G1/2″*14 O115 19.3 14 44.5 27
1JG-10-12 7/8″*14 G3/4″*14 O119 19.3 15.5 48.5 32
1JG-12-08 1.1/16″*12 G1/2″*14 O115 22 14 49 30
1JG-12 1.1/16″*12 G3/4″*14 O119 22 15.5 49.5 32
1JG-12-16 1.1/16″*12 G1″*11 O217 22 18 54 41
1JG-12-20 1.1/16″*12 G1.1/4″*11 O222 22 20 57 50
1JG-16-12 1.5/16″*12 G3/4″*14 O119 23 15.5 52.5 36
1JG-16 1.5/16″*12 G1″*11 O217 23 18 55 41
1JG-16-20 1.5/16″*12 G1.1/4″*11 O222 23 20 58 50
1JG-20-16 1.5/8″*12 G1″*11 O217 24.3 18 58 46
1JG-20 1.5/8″*12 G1.1/4″*11 O222 24.3 20 59.5 50
1JG-24-16 1.7/8″*12 G1″*11 O217 18 63.5 50
1JG-24-20 1.7/8″*12 G1.1/4″*11 O222 27.5 20 65.5 50
1JG-24 1.7/8″*12 G1.1/2″*11 O224 27.5 21.5 64 55

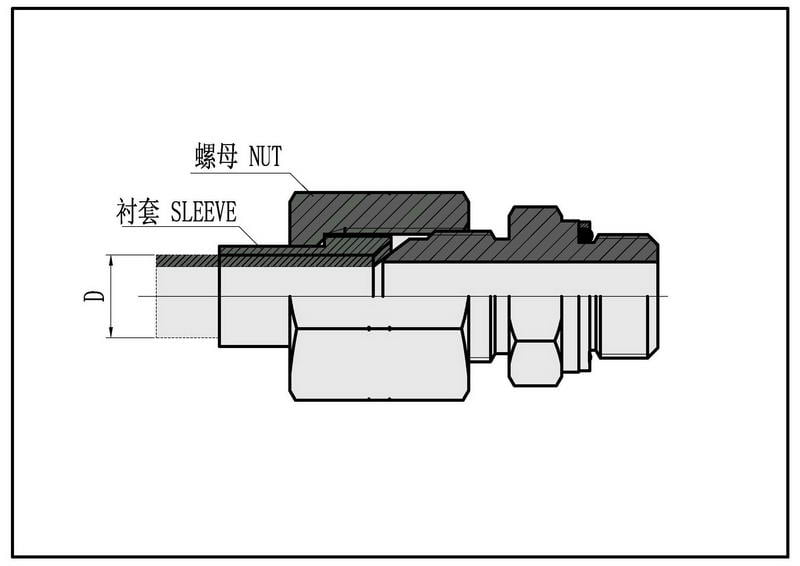

Note:  Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube.
