4B-WD

BSP MALE CAPTIVE SEAL PLUG

Material

carbon steel

Surface

CR3+ zinc plating

Application

Connector for fittings and tubes

Details about 4B-WD

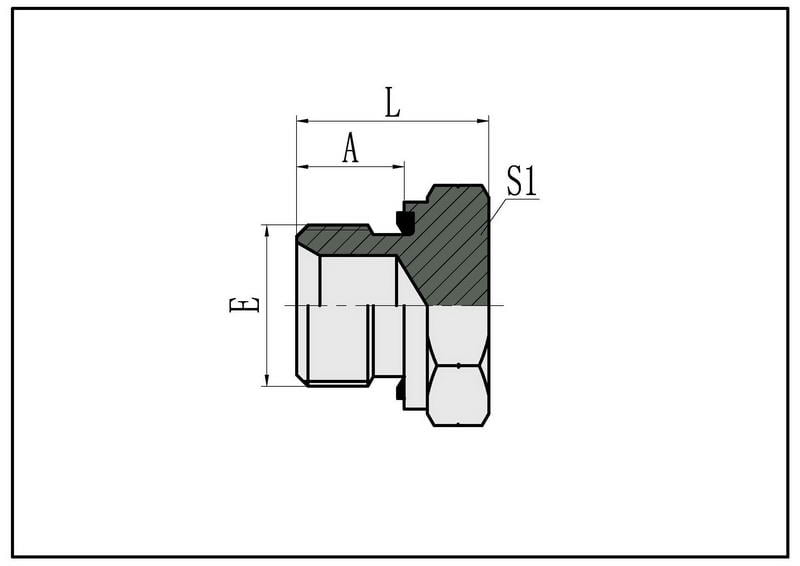

PART NO.  THREAD CAPTIVE  DIMENSIONS
E E A L S1
4B-02WD G1/8″*28 WD-B02 8 15.5 14
4B-04WD G1/4″*19 WD-B04 12 19.6 19
4B-06WD G3/8″*19 WD-B06 12 22.5 22
4B-08WD G1/2″*14 WD-B08 14 25 27
4B-12WD G3/4″*14 WD-B12 16 29 32
4B-16WD G1″*11 WD-B16 16 35 41
4B-20WD R1.1/4″*11 WD-B20 20 37 50
4B-24WD R1.1/2″*11 WD-B24 22 40 55

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
