2B9

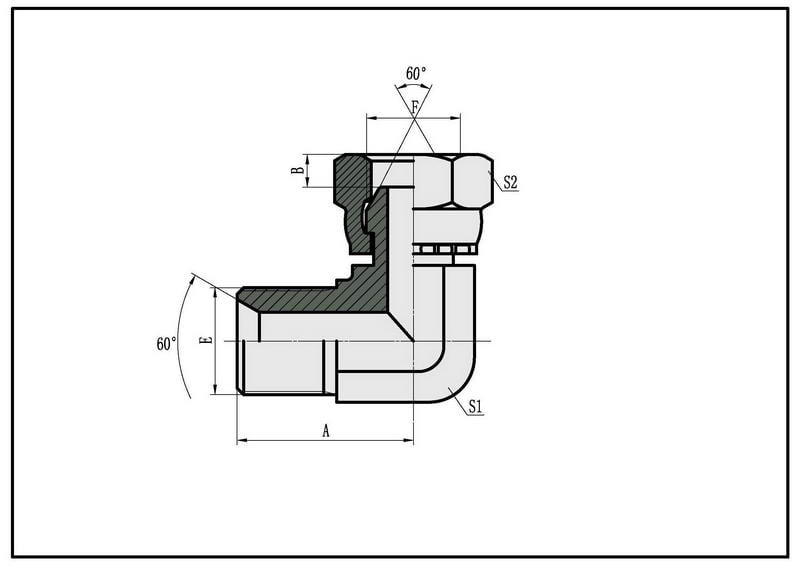

90° ELBOW BSP MALE 60° SEAT / BSP FEMALE 60° CONE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |
Details about 2B9
| PART NO. | THREAD | DIMENSIONS | |||||||
| E | F | A | B | S1 | S2 | ||||
| 2B9-02 | G1/8″*28 | G1/8″*28 | 19.8 | 5.5 | 11 | 14 | |||
| 2B9-04 | G1/4″*19 | G1/4″*19 | 24.5 | 5.5 | 14 | 19 | |||
| 2B9-04-06 | G1/4″*19 | G3/8″*19 | 25 | 6.3 | 14 | 22 | |||
| 2B9-06 | G3/8″*19 | G3/8″*19 | 27.5 | 6.3 | 16 | 22 | |||
| 2B9-06-04 | G3/8″*19 | G1/4″*19 | 27.5 | 5.5 | 16 | 19 | |||
| 2B9-08 | G1/2″*14 | G1/2″*14 | 34.5 | 7.5 | 22 | 27 | |||
| 2B9-08-06 | G1/2″*14 | G3/8″*14 | 34.5 | 6.3 | 22 | 22 | |||
| 2B9-10 | G5/8″*14 | G5/8″*14 | 35 | 9.5 | 22 | 30 | |||
| 2B9-10-08 | G5/8″*14 | G1/2″*14 | 35 | 7.5 | 22 | 27 | |||
| 2B9-12 | G3/4″*14 | G3/4″*14 | 40 | 10.9 | 27 | 32 | |||
| 2B9-16 | G1″*11 | G1″*11 | 46 | 11.7 | 33 | 41 | |||
| 2B9-20 | G1.1/4″*11 | G1.1/4″*11 | 50.5 | 11 | 41 | 50 | |||
| 2B9-24 | G1.1/2″*11 | G1.1/2″*11 | 57.5 | 13 | 48 | 55 | |||
| 2B9-32 | G2″*11 | G2″*11 | 72.5 | 16 | 63 | 70 | |||
