1F9

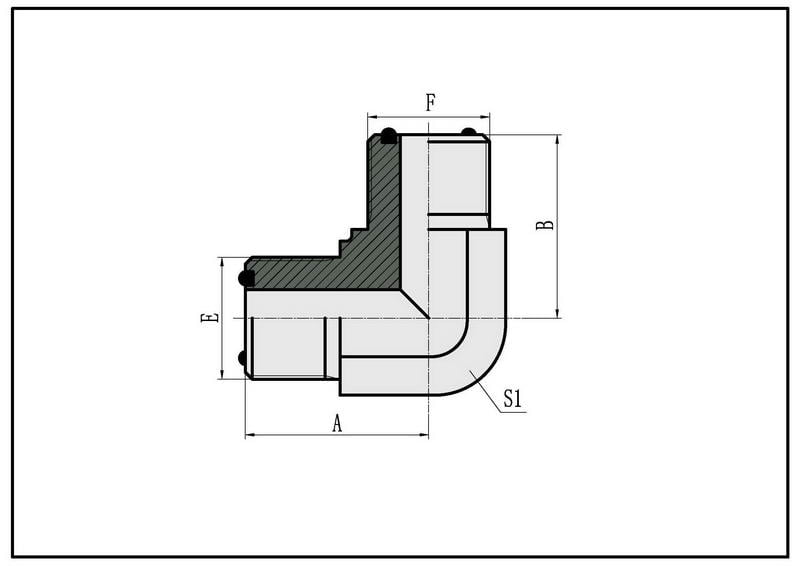

90° ELBOW ORFS MALE O-RING

Material

carbon steel

Surface

CR3+ zinc plating

Application

Connector for fittings and tubes

Details about 1F9

PART NO.  THREAD O-RING  DIMENSIONS
E F E F A B S1
1F9-04 9/16”*18 9/16”*18 O011 O011 23 23 14
1F9-04-06 9/16”*18 11/16″*16 O011 O012 25.5 27 19
1F9-06 11/16″*16 11/16″*16 O012 O012 27.5 27.5 19
1F9-06-08 11/16″*16 13/16″*16 O012 O014 29 31 22
1F9-08 13/16″*16 13/16″*16 O014 O014 31 31 22
1F9-08-12 13/16″*16 1.3/16″*12 O014 O018 35.5 40.3 30
1F9-10 1″*14 1″*14 O016 O016 36.5 36.5 27
1F9-12 1.3/16″*12 1.3/16″*12 O018 O018 41 41 30
1F9-16 1.7/16″*12 1.7/16″*12 O021 O021 44.5 44.5 36
1F9-20 1.11/16″*12 1.11/16″*12 O025 O025 47.5 47.5 41
1F9-24 2″*12 2″*12 O029 O029 53.5 53.5 50
