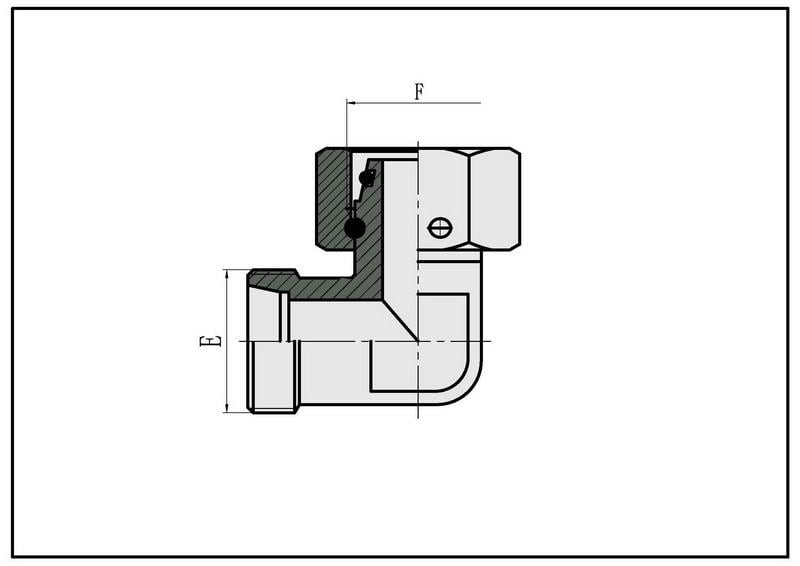

90° ELBOW METRIC MALE 24° CONE / FEMALE 24° CONE
Material | carbon steel |
---|---|
Surface | CR3+ zinc plating |
Application | Connector for fittings and tubes |
PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | |||||||
E | F | D1 | D2 | I1 | L1 | L2 | S1 | S2 | S3 | ||
2C9-12 | M12*1.5 | M12*1.5 | 6 | 6 | 12 | 27 | 26 | 12 | 14 | 14 | 31.5 L |
2C9-14 | M14*1.5 | M14*1.5 | 8 | 8 | 14 | 29 | 28 | 12 | 17 | 17 | |
2C9-16 | M16*1.5 | M16*1.5 | 10 | 10 | 15 | 30 | 29 | 14 | 19 | 19 | |
2C9-18 | M18*1.5 | M18*1.5 | 12 | 12 | 17 | 32 | 30 | 17 | 22 | 22 | |
2C9-22 | M22*1.5 | M22*1.5 | 15 | 15 | 21 | 36 | 33 | 19 | 27 | 27 | |
2C9-26 | M26*1.5 | M26*1.5 | 18 | 18 | 24 | 40 | 36 | 24 | 32 | 32 | |
2C9-30 | M30*2 | M30*2 | 22 | 22 | 28 | 44 | 39 | 27 | 36 | 36 | 16 L |
2C9-36 | M36*2 | M36*2 | 28 | 28 | 31 | 47 | 42 | 36 | 41 | 41 | |
2C9-45 | M45*2 | M45*2 | 35 | 35 | 35 | 56 | 51 | 41 | 50 | 50 | |
2C9-52 | M52*2 | M52*2 | 42 | 42 | 40 | 63 | 56 | 50 | 60 | 60 | |
2D9-14 | M14*1.5 | M14*1.5 | 6 | 6 | 16 | 31 | 27 | 12 | 17 | 17 | 63 S |
2D9-16 | M16*1.5 | M16*1.5 | 8 | 8 | 17 | 32 | 28 | 14 | 19 | 19 | |
2D9-18 | M18*1.5 | M18*1.5 | 10 | 10 | 18 | 34 | 30 | 17 | 22 | 22 | |
2D9-20 | M20*1.5 | M20*1.5 | 12 | 12 | 22 | 38 | 31 | 17 | 24 | 24 | |
2D9-22 | M22*1.5 | M22*1.5 | 14 | 14 | 22 | 40 | 35 | 19 | 27 | 27 | |
2D9-24 | M24*1.5 | M24*1.5 | 16 | 16 | 25 | 43 | 37 | 24 | 30 | 30 | 40 S |
2D9-30 | M30*2 | M30*2 | 20 | 20 | 26 | 48 | 45 | 27 | 36 | 36 | |
2D9-36 | M36*2 | M36*2 | 25 | 25 | 30 | 54 | 50 | 36 | 46 | 46 | |
2D9-42 | M45*2 | M45*2 | 30 | 30 | 36 | 62 | 55 | 41 | 50 | 50 | |
2D9-52 | M52*2 | M52*2 | 38 | 38 | 41 | 72 | 63 | 50 | 60 | 60 | 31.5 S |
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix “RN” after our part NO., for example 2C9-30RN. |
