1C9,1D9

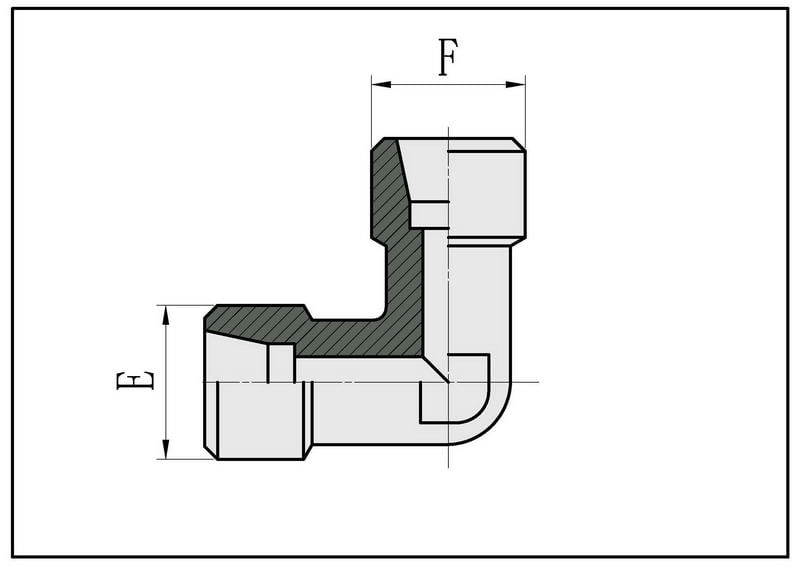

90° ELBOW METRIC MALE 24°CONE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |
Details about 1C9,1D9
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | |||||||
| E | F | D1 | D2 | I1,I2 | L1,L2 | S1 | S2,S3 | ||||
| 1C9-12 | M12*1.5 | M12*1.5 | 6 | 6 | 12 | 27 | 12 | 14 | 31.5 L | ||
| 1C9-14 | M14*1.5 | M14*1.5 | 8 | 8 | 14 | 29 | 12 | 17 | |||
| 1C9-16 | M16*1.5 | M16*1.5 | 10 | 10 | 15 | 30 | 14 | 19 | |||
| 1C9-18 | M18*1.5 | M18*1.5 | 12 | 12 | 17 | 32 | 17 | 22 | |||
| 1C9-22 | M22*1.5 | M22*1.5 | 15 | 15 | 21 | 36 | 19 | 27 | |||
| 1C9-26 | M26*1.5 | M26*1.5 | 18 | 18 | 23.5 | 40 | 24 | 32 | |||
| 1C9-30 | M30*2 | M30*2 | 22 | 22 | 27.5 | 44 | 27 | 36 | 16 L | ||
| 1C9-36 | M36*2 | M36*2 | 28 | 28 | 30.5 | 47 | 36 | 41 | |||
| 1C9-45 | M45*2 | M45*2 | 35 | 35 | 34.5 | 56 | 41 | 50 | |||
| 1C9-52 | M52*2 | M52*2 | 42 | 42 | 40 | 63 | 50 | 60 | |||
| 1D9-14 | M14*1.5 | M14*1.5 | 6 | 6 | 16 | 31 | 12 | 17 | 63 S | ||
| 1D9-16 | M16*1.5 | M16*1.5 | 8 | 8 | 17 | 32 | 14 | 19 | |||
| 1D9-18 | M18*1.5 | M18*1.5 | 10 | 10 | 17.5 | 34 | 17 | 22 | |||
| 1D9-20 | M20*1.5 | M20*1.5 | 12 | 12 | 21.5 | 38 | 17 | 24 | |||
| 1D9-22 | M22*1.5 | M22*1.5 | 14 | 14 | 22 | 40 | 19 | 27 | |||
| 1D9-24 | M24*1.5 | M24*1.5 | 16 | 16 | 24.5 | 43 | 24 | 30 | 40 S | ||
| 1D9-30 | M30*2 | M30*2 | 20 | 20 | 26.5 | 48 | 27 | 36 | |||
| 1D9-36 | M36*2 | M36*2 | 25 | 25 | 30 | 54 | 36 | 46 | |||
| 1D9-42 | M45*2 | M45*2 | 30 | 30 | 35.5 | 62 | 41 | 50 | 31.5 S | ||
| 1D9-52 | M52*2 | M52*2 | 38 | 38 | 41 | 72 | 50 | 60 | |||
| Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix “RN” after our part NO., for example 1C9-30RN. | |||||||||||
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
