13013-SP

AGR-K INTERLOCK BSPT MALE

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for R13 and R15 hoses

Details about 13013-SP

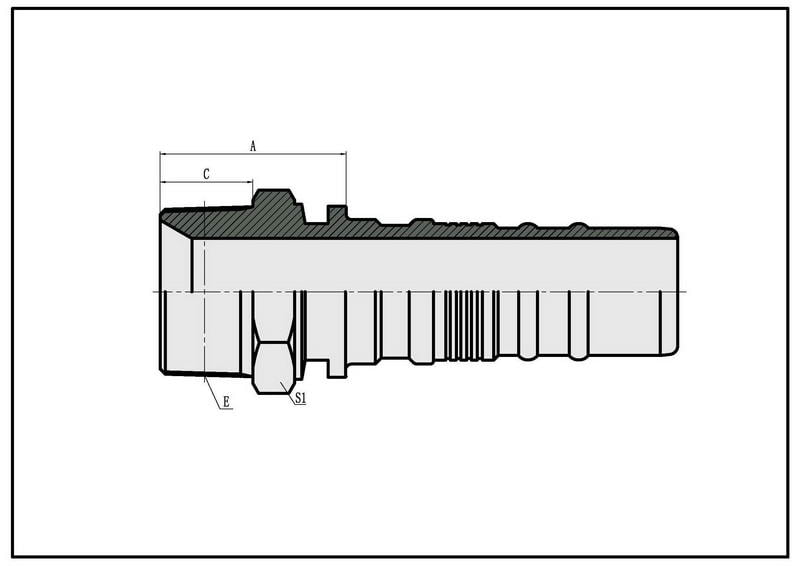

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S2
13013-12-12SP R3/4″*14 20 12 38 20 30
13013-16-16SP R1″*11 25 16 45.9 25.2 38
13013-20-20SP R1.1/4″*11 32 20 51.3 26.5 46
13013-24-24SP R1.1/2″*11 40 24 53.2 26.5 50
13013-32-32SP R2″*11 50 32 58.5 30 65

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
