SFS 90° INTERLOCK SAE FLANGE 6000 PSI

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for R13 and R15 hoses

Details about 87693

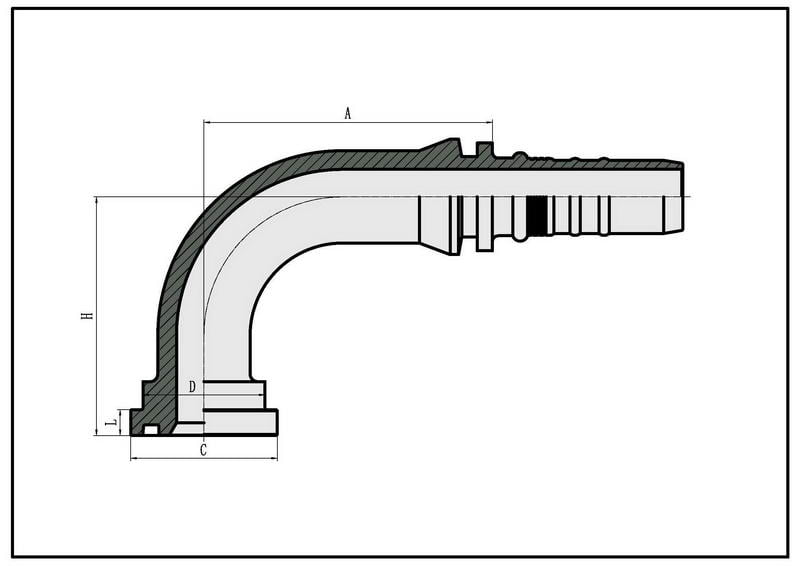

PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
DN DASH A C D H L
87693-12-12 3/4″ 20 12 75 41.3 32 66 8.76
87693-16-12 1″ 20 12 75 47.6 38 68 9.53
87693-16-16 1″ 25 16 88.9 47.6 38 73.5 9.53
87693-20-16 1.1/4″ 25 16 88.9 54 44 78.5 10.29
87693-20-20 1.1/4″ 32 20 105.8 54 44 86.5 10.29
87693-24-20 1.1/2″ 32 20 105.8 63.5 51 89.5 12.57
87693-24-24 1.1/2″ 40 24 124.2 63.5 51 103 12.57
87693-32-24 2″ 40 24 124.2 79.4 67 103 12.57
87693-32-32 2″ 50 32 150.3 79.4 67 123.3 12.57
