00TF0 FERRULE FOR SMOOTH PTFE HOSE
Ferrule for PTFE hose smooth
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Fix hose with coupling after crimping |

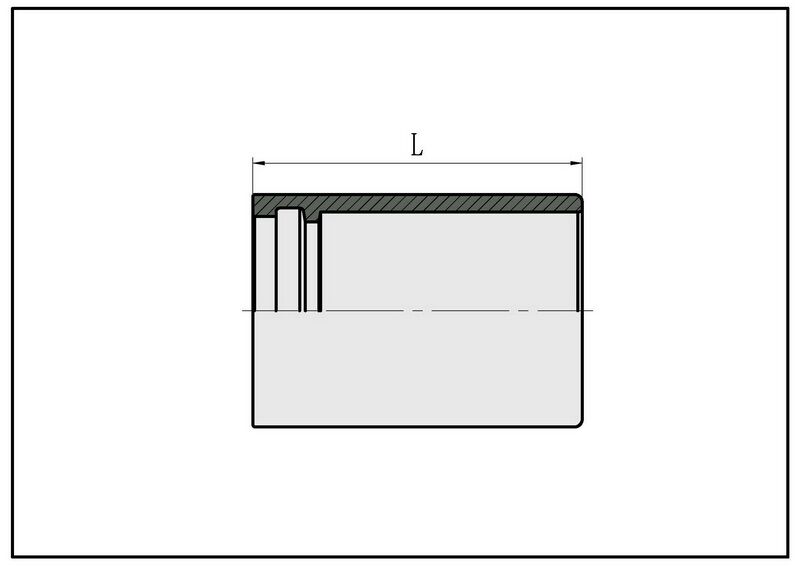

Details about 00TF0 FERRULE FOR SMOOTH PTFE HOSE
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00TF0-03 | 4 | 3 | 27.5 |
| 00TF0-04 | 6 | 4 | 30.7 |
| 00TF0-05 | 8 | 5 | 30.6 |
| 00TF0-06 | 10 | 6 | 32.1 |
| 00TF0-08 | 12 | 8 | 34.3 |
| 00TF0-10 | 16 | 10 | 37 |
| 00TF0-12 | 20 | 12 | 42.8 |
| 00TF0-14 | 22 | 14 | 42.7 |
| 00TF0-16 | 25 | 16 | 50.8 |
Application: Smooth PTFE hose
| HOSE PART NO. | HOSE I.D. | HOSE O.D. | FERRULE |
| mm | mm | ||
| PTFE03 | 5.1 | 8 | 00TF0-03 |
| PTFE04 | 6.7 | 9 | 00TF0-04 |
| PTFE05 | 8.4 | 11 | 00TF0-05 |
| PTFE06 | 9.5 | 12.5 | 00TF0-06 |
| PTFE08 | 13.4 | 16.5 | 00TF0-08 |
| PTFE10 | 16.6 | 20 | 00TF0-10 |
| PTFE12 | 19.8 | 23 | 00TF0-12 |
| PTFE16 | 26.1 | 29.5 | 00TF0-16 |
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
