FS-W
ONE-PIECE SAE FLANGE CLAMP 6000 PSI
Material | carbon steel |
---|---|
Surface | CR3+ zinc plating |
Application | Clamp to fix flange head |
Details about FS-W

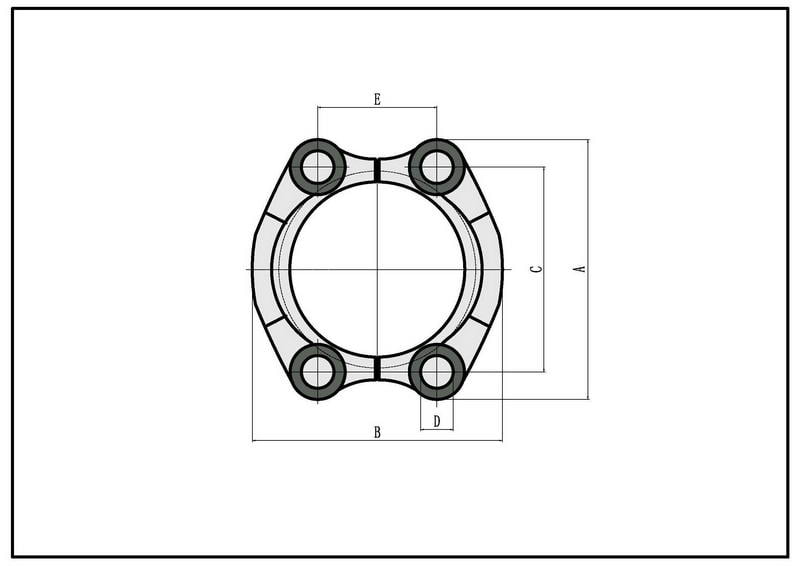

PART NO. | FLANGE SIZE | DIMENSIONS | ||||
A | B | C | D | E | ||
FS-08W | 1/2″ | 56.3 | 47 | 40.5 | 9 | 18.2 |
FS-12W | 3/4″ | 71.4 | 60 | 50.8 | 11 | 23.8 |
FS-16W | 1″ | 81 | 60 | 57.1 | 13 | 27.8 |
FS-20W | 1.1/4″ | 95.3 | 77 | 66.7 | 15 | 31.8 |
FS-24W | 1.1/2″ | 112.7 | 95 | 79.4 | 17 | 36.5 |
FS-32W | 2″ | 133.4 | 114 | 96.8 | 21 | 44.5 |
Note:Bolt should be ordered another. |
