90012

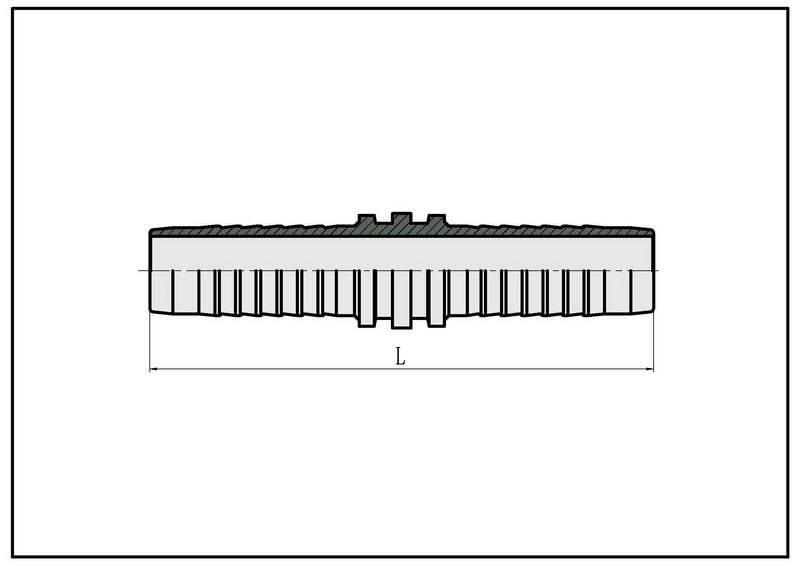

DPN DOUBLE CONNECTOR

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 90012

PART NO. HOSE BORE DIMENSIONS
DN DASH L
90012-04 6 04 83
90012-05 8 05 87
90012-06 10 06 87
90012-08 12 08 91
90012-10 16 10 97
90012-12 20 12 110
90012-16 25 16 134
90012-20 32 20 153
90012-24 40 24 172
90012-32 50 32 178
Note: For spiral hose.

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
