DKJKOM JIS METRIC FEMALE 60° CONE SEAT
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |
Details about 28611

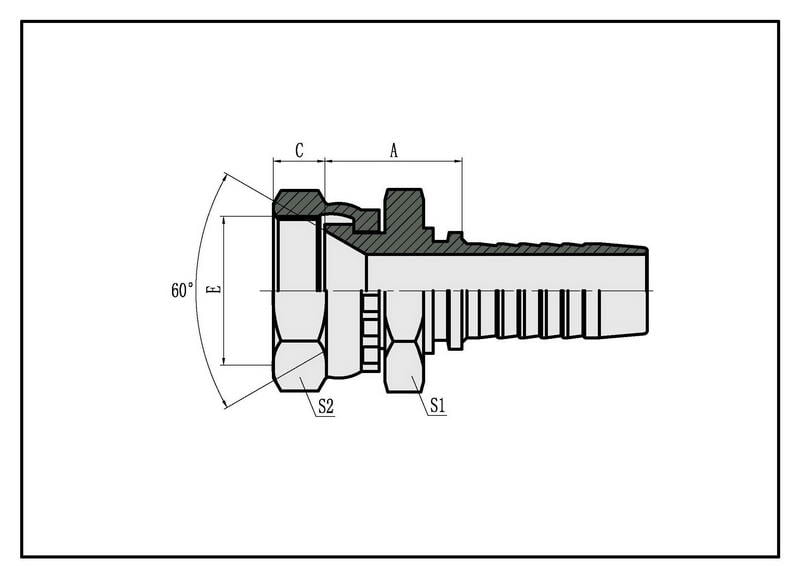

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| Braided hose | Spiral hose | DN | DASH | A | C | S1 | S2 | |
| 28611-12-04 | 28612-12-04 | M12*1.5 | 6 | 04 | 20 | 9 | 17 | 17 |
| 28611-14-04 | 28612-14-04 | M14*1.5 | 6 | 04 | 21 | 10.5 | 19 | 19 |
| 28611-14-06 | 28612-14-06 | M14*1.5 | 10 | 06 | 21 | 10.5 | 19 | 19 |
| 28611-16-04 | 28612-16-04 | M16*1.5 | 6 | 04 | 24 | 10 | 22 | 22 |
| 28611-16-05 | 28612-16-05 | M16*1.5 | 8 | 05 | 24 | 10 | 22 | 22 |
| 28611-16-06 | 28612-16-06 | M16*1.5 | 10 | 06 | 24 | 10 | 22 | 22 |
| 28611-18-06 | 28612-18-06 | M18*1.5 | 10 | 06 | 25 | 11.5 | 24 | 24 |
| 28611-18-08 | 28612-18-08 | M18*1.5 | 12 | 08 | 24.5 | 11.5 | 24 | 24 |
| 28611-20-08 | 28612-20-08 | M20*1.5 | 12 | 08 | 28.5 | 12 | 27 | 27 |
| 28611-22-08 | 28612-22-08 | M22*1.5 | 12 | 08 | 25.5 | 14 | 27 | 27 |
| 28611-24-08 | 28612-24-08 | M24*1.5 | 12 | 08 | 27.5 | 15 | 32 | 32 |
| 28611-24-10 | 28612-24-10 | M24*1.5 | 16 | 10 | 28.5 | 15 | 32 | 32 |
| 28611-27-10 | 28612-27-10 | M27*1.5 | 16 | 10 | 28.5 | 10 | 32 | 32 |
| 28611-30-12 | 28612-30-12 | M30*1.5 | 20 | 12 | 28.5 | 18.3 | 36 | 36 |
| 28611-33-12 | 28612-33-12 | M33*1.5 | 20 | 12 | 31 | 21.3 | 41 | 41 |
| 28611-33-16 | 28612-33-16 | M33*1.5 | 25 | 16 | 32 | 21.3 | 41 | 41 |
| 28611-36-20 | 28612-36-20 | M36*1.5 | 32 | 20 | 35.5 | 20 | 46 | 46 |
| 28611-42-24W | 28612-42-24W | M42*1.5 | 40 | 24 | 36 | 18.8 | 55 | 55 |
