03310 FERRULE FOR R2AT 2SN HOSE
Non-skive ferrule for SAE 100 R2AT / EN 853 2SN hose
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Fix hose with coupling after crimping |

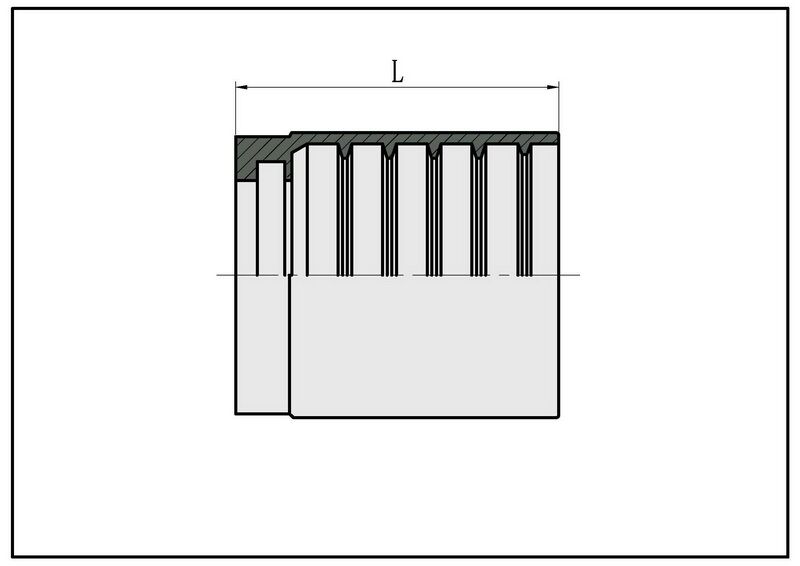

Details about 03310 FERRULE FOR R2AT 2SN HOSE
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 03310-03 | 5 | 3 | 23 |
| 03310-04 | 6 | 4 | 30.5 |
| 03310-05 | 8 | 5 | 30 |
| 03310-06 | 10 | 6 | 32 |
| 03310-08 | 12 | 8 | 34 |
| 03310-10 | 16 | 10 | 37 |
| 03310-12 | 20 | 12 | 42 |
| 03310-16 | 25 | 16 | 51 |
| 03310-20 | 32 | 20 | 59 |
| 03310-24 | 40 | 24 | 67 |
| 03310-32 | 50 | 32 | 72 |

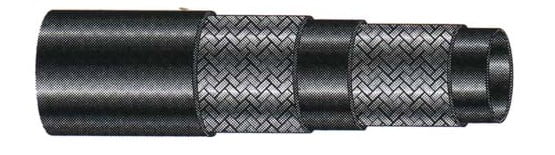

Application: Two Wires Braid Hose (SAE 100 R2AT) & (EN 853 2SN)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | FERRULE | |
| mm | DASH | in | mm | mm | NON SKIVE | |
| 2T03 / 2SN03 | 5 | -03 | 3/16 | 4.8 | 13.4 | 03310-03 |
| 2T04 / 2SN04 | 6 | -04 | 1/4 | 6.4 | 15 | 03310-04 |
| 2T05 / 2SN05 | 8 | -05 | 5/16 | 7.9 | 16.7 | 03310-05 |
| 2T06 / 2SN06 | 10 | -06 | 3/8 | 9.5 | 19.1 | 03310-06 |
| 2T08 / 2SN08 | 12 | -08 | 1/2 | 12.7 | 22.2 | 03310-08 |
| 2T10 / 2SN10 | 16 | -10 | 5/8 | 15.9 | 25.4 | 03310-10 |
| 2T12 / 2SN12 | 20 | -12 | 3/4 | 19 | 29.3 | 03310-12 |
| 2T16 / 2SN16 | 25 | -16 | 1 | 25.4 | 38.1 | 03310-16 |
| 2T20 / 2SN20 | 32 | -20 | 1.1/4 | 31.8 | 48.3 | 03310-20 |
| 2T24 / 2SN24 | 40 | -24 | 1.1/2 | 38.1 | 54.6 | 03310-24 |
| 2T32 / 2SN32 | 50 | -32 | 2 | 50.8 | 67.4 | 03310-32 |
