Details about Hose Spring Guard
SP-Spring guards are made of wear-resistant wire and plated. Which can protect hoses from wear, abrasion, and deep cuts, prolong the hose’s working life.
Installation Guide: choose a spring guard with I.D. just larger than O.D. of hose, cut a piece about 1/3 the hose length, then extend it longitudinally to reach the whole range. Turn the spring guard opposite to the direction of wore-winging when pushing it onto the hose, then crimp the hose fitting finally.

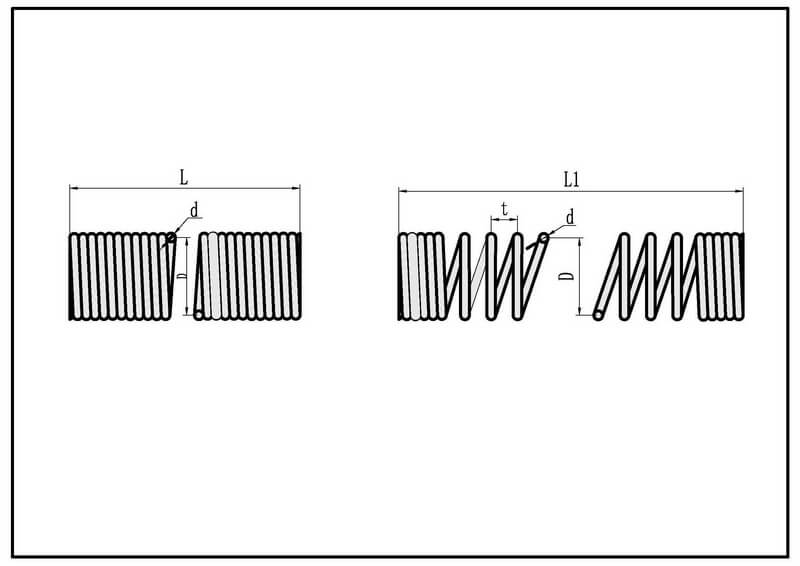

PART NO. | (D)I.D. | (d)WIRE O.D. | (L) LENGTH |
SP-13 | 13 | 1.4 | 3000 |
SP-15 | 15 | 1.4 | 3000 |
SP-17 | 17 | 1.4 | 3000 |
SP-18 | 18 | 1.5 | 3000 |
SP-20 | 20 | 1.5 | 3000 |
SP-22 | 22 | 1.5 | 3000 |
SP-24 | 24 | 1.5 | 3000 |
SP-25 | 25 | 1.5 | 3000 |
SP-27 | 27 | 1.5 | 3000 |
SP-30 | 30 | 2.0 | 3000 |
SP-32 | 32 | 2.0 | 3000 |
SP-34 | 34 | 2.0 | 3000 |
SP-36 | 36 | 2.5 | 3000 |
SP-38 | 38 | 2.5 | 3000 |
SP-40 | 40 | 2.5 | 3000 |
SP-42 | 42 | 2.5 | 3000 |
SP-45 | 45 | 2.5 | 3000 |
SP-46 | 46 | 2.5 | 3000 |
SP-49 | 49 | 2.5 | 3000 |
SP-51 | 51 | 3.0 | 2000 |
SP-52 | 52 | 3.0 | 2000 |
SP-54 | 54 | 3.0 | 2000 |
SP-57 | 57 | 3.0 | 2000 |
SP-60 | 60 | 3.0 | 2000 |
SP-74 | 74 | 3.0 | 1500 |
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
