87943

SFC 45° INTERLOCK SAE FLANGE 9000 PSI

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for R13 and R15 hoses

Details about 87943

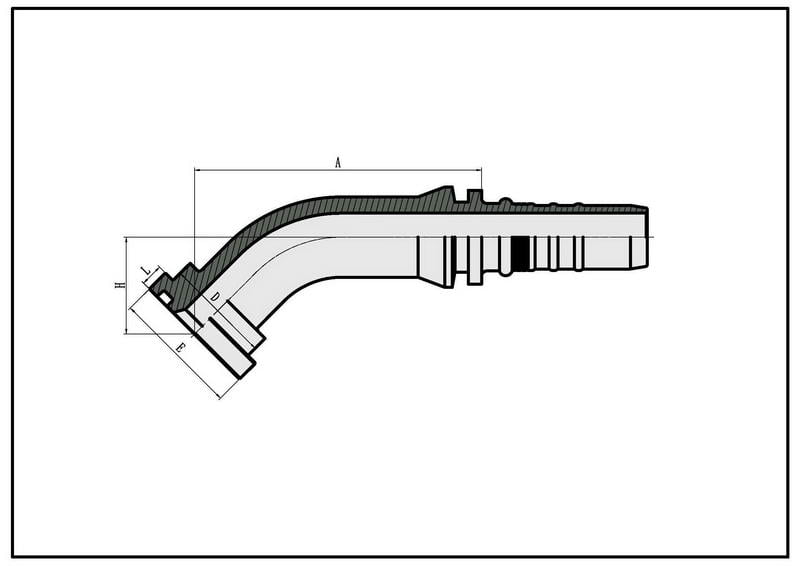

PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
DN DASH A C D H L
87943-12-12 3/4″ 20 12 92.6 41.3 31.7 35.6 14.3
87943-16-12 1″ 20 12 93.7 47.6 38 36.7 14.3
87943-16-16 1″ 25 16 103.9 47.6 38 37.5 14.3
87943-20-16 1.1/4″ 25 16 104.6 54 43 38.2 14.3
87943-20-20 1.1/4″ 32 20 117.3 54 43 42.3 14.3
87943-24-20 1.1/2″ 32 20 118 63.5 50.8 43 14.3
87943-24-24 1.1/2″ 40 24 132.5 63.5 50.8 46.9 14.3

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
