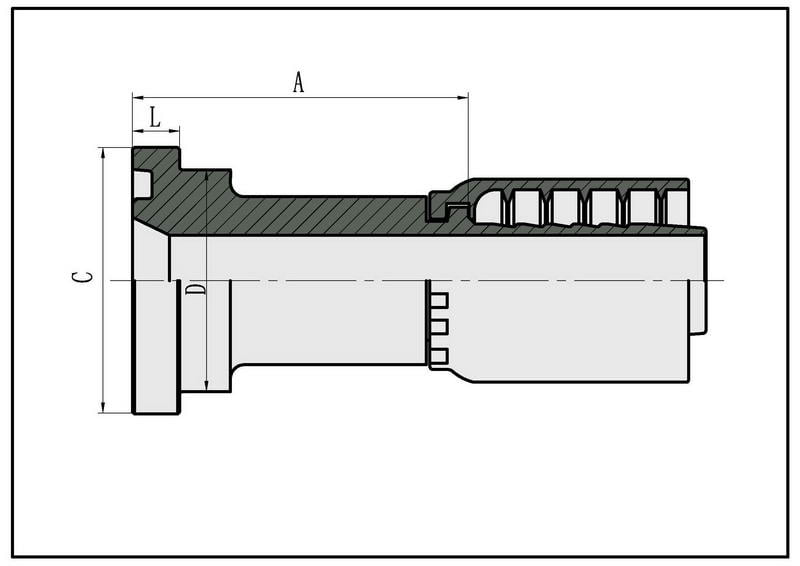

SFS SAE ONE PIECE FLANGE 6000 PSI
Material | carbon steel |
---|---|
Surface | CR3+ zinc plating |
Application | coupling for braid or spiral hoses |
PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||||
BRAIDED HOSE | SPIRAL HOSE | DN | DASH | A | C | D | L | ||
87611Y-08-08Z | 87612Y-08-08Z | 1/2″ | 12 | 8 | 47 | 31.7 | 24 | 7.75 | |
87611Y-12-10Z | 87612Y-12-10Z | 3/4″ | 16 | 10 | 50.5 | 41.3 | 32 | 8.76 | |
87611Y-12-12Z | 87612Y-12-12Z | 3/4″ | 20 | 12 | 51 | 41.3 | 32 | 8.76 | |
87611Y-16-12Z | 87612Y-16-12Z | 1″ | 20 | 12 | 56 | 47.6 | 38 | 9.53 | |
87611Y-16-16Z | 87612Y-16-16Z | 1″ | 25 | 16 | 57 | 47.6 | 38 | 9.53 | |
87611Y-16-20Z | 87612Y-16-20Z | 1″ | 32 | 20 | 61/63.1 | 47.6 | 38 | 9.53 | |
87611Y-20-16Z | 87612Y-20-16Z | 1.1/4″ | 25 | 16 | 65 | 54 | 44 | 10.29 | |
87611Y-20-20Z | 87612Y-20-20Z | 1.1/4″ | 32 | 20 | 66/68.1 | 54 | 44 | 10.29 | |
87611Y-24-20Z | 87612Y-24-20Z | 1.1/2″ | 32 | 20 | 75/77.1 | 63.5 | 51 | 12.57 | |
87611Y-24-24Z | 87612Y-24-24Z | 1.1/2″ | 40 | 24 | 75/78 | 63.5 | 51 | 12.57 | |
87611Y-32-24Z | 87612Y-32-24Z | 2″ | 40 | 24 | 85/88 | 79.4 | 67 | 12.57 | |
87611Y-32-32Z | 87612Y-32-32Z | 2″ | 50 | 32 | 85/88.4 | 79.4 | 67 | 12.57 | |
Note: | |||||||||
1. The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose. |
