26711D-SM

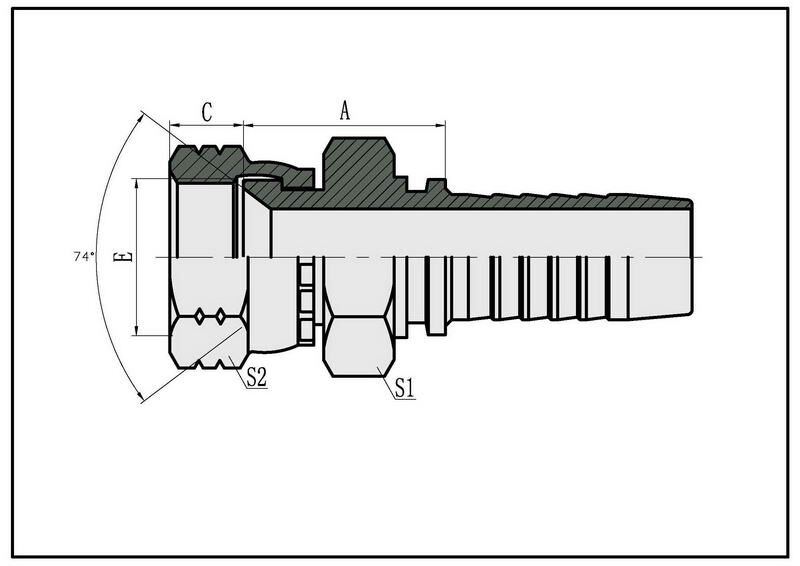

JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON
Material | carbon steel |
---|---|
Surface | CR3+ zinc plating |
Application | coupling for braid or spiral hoses |
Details about 26711D-SM
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
Braided hose | Spiral hose | DN | DASH | A | C | S1 | S2 | |
26711D-04-04SM | 26712D-04-04SM | 7/16″*20 | 6 | 04 | 20 | 9 | 12 | 15 |
26711D-05-04SM | 26712D-05-04SM | 1/2″*20 | 6 | 04 | 20.5 | 9.5 | 12 | 17 |
26711D-06-04SM | 26712D-06-04SM | 9/16″*18 | 6 | 04 | 21 | 10.5 | 14 | 19 |
26711D-06-06SM | 26712D-06-06SM | 9/16″*18 | 10 | 06 | 21 | 10.5 | 17 | 19 |
26711D-08-06SM | 26712D-08-06SM | 3/4″*16 | 10 | 06 | 25 | 11 | 19 | 24 |
26711D-08-08SM | 26712D-08-08SM | 3/4″*16 | 12 | 08 | 24.5 | 11 | 22 | 24 |
26711D-08-10SM | 26712D-08-10SM | 3/4″*16 | 16 | 10 | 25.5 | 11 | 22 | 24 |
26711D-10-08SM | 26712D-10-08SM | 7/8″*14 | 12 | 08 | 24 | 13 | 22 | 27 |
26711D-10-10SM | 26712D-10-10SM | 7/8″*14 | 16 | 10 | 27 | 13 | 22 | 27 |
26711D-12-12SM | 26712D-12-12SM | 1.1/16″*12 | 20 | 12 | 31.5 | 15 | 27 | 32 |
26711D-16-12SM | 26712D-16-12SM | 1.5/16″*12 | 20 | 12 | 31.5 | 16 | 32 | 41 |
26711D-16-16SM | 26712D-16-16SM | 1.5/16″*12 | 25 | 16 | 32.5 | 16 | 32 | 41 |
26711D-20-20SM | 26712D-20-20SM | 1.7/16″*12 | 32 | 20 | 37 | 17 | 41 | 50 |
