20011Y-ST

ONE PIECE METRIC FEMALE WATERWASH INSERT

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 20011Y-ST

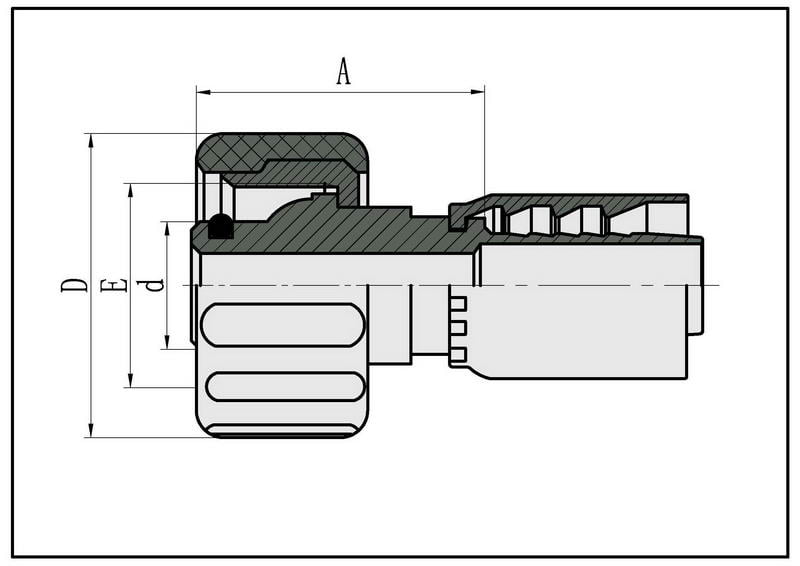

 PART NO. E HOSE   BORE   DIMENSIONS
BRAIDED HOSE SPIRAL HOSE THREAD E DN DASH A d D
20011Y-22-04STZ M22x1.5 6 4 25 14 34.5
20011Y-22-05STZ M22x1.5 8 5 25 14 34.5
20011Y-22-06STZ M22x1.5 10 6 25 14 34.5

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
