1CI,1DI

METRIC BANJO ADAPTER

Material

carbon steel

Surface

CR3+ zinc plating

Application

Connector for fittings and tubes

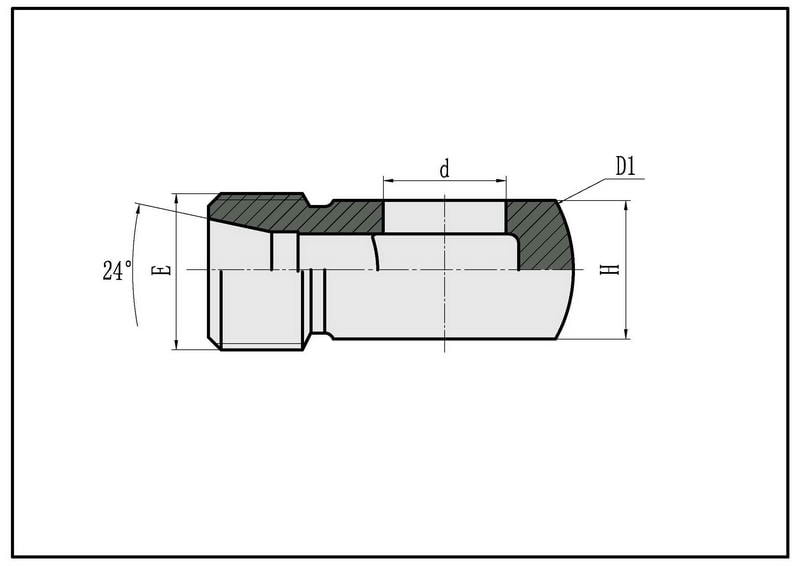

Details about 1CI,1DI

PART NO.  THREAD TUBE O.D BOLT   DIMENSIONS MPa
E F D1. D1 d H L L1 S1
1CI-12-10 M12*1.5 6 700M-10 17 10 10 16 31 14 25 L
1CI-14-12 M14*1.5 8 700M-12 20 12 12 18.5 33 17
1CI-16-14 M16*1.5 10 700M-14 24 14 14 20.5 35 19
1CI-18-16 M18*1.5 12 700M-16 28 16 16 22 37 22 16 L
1CI-22-18 M22*1.5 15 700M-18 32 18 20 23 38 27
1CI-26-22 M26*1.5 18 700M-22 39 22 25 27.5 43.5 32
1CI-30-26 M30*2 22 700M-26 46 26 30 34 50.5 36
1DI-14-12 M14*1.5 6 700M-12 20 12 12 20.5 35 17 63 S
1DI-16-14 M16*1.5 8 700M-14 24 14 14 22.5 36 19
1DI-18-16 M18*1.5 10 700M-16 28 16 16 23 39.5 22 40 S
1DI-20-18 M20*1.5 12 700M-18 32 18 20 25 41 24
1DI-22-18 M22*1.5 14 700M-18 32 20 20 28 46 27
1DI-24-22 M24*1.5 16 700M-22 39 22 25 28.5 46.5 30
1DI-30-26 M30*2 20 700M-26 46 26 30 37 58.5 36
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix “RN” after our part NO., for example 1DI-30-26/RN.
