1B

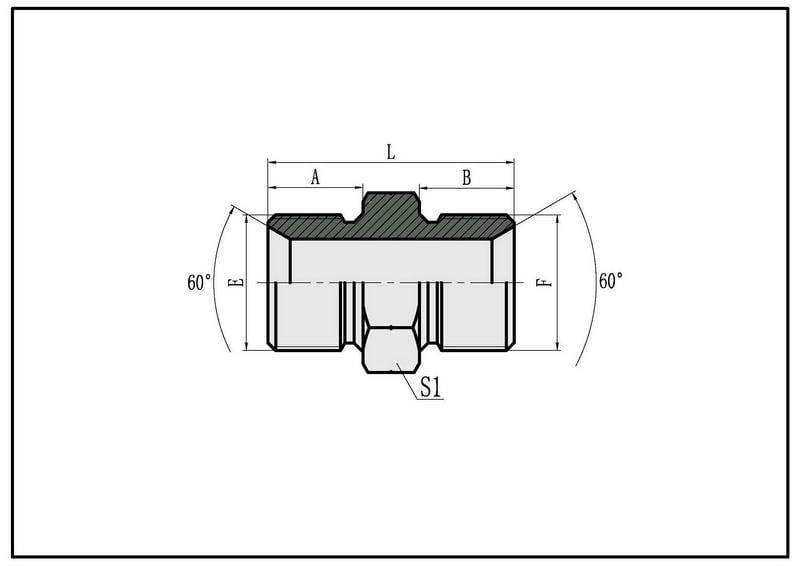

STRAIGHT ADAPTER BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |
Details about 1B
| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | L | S1 | |
| 1B-02 | G1/8″*28 | G1/8″*28 | 10 | 10 | 26 | 14 |
| 1B-02-04 | G1/8″*28 | G1/4″*19 | 10 | 12 | 28 | 19 |
| 1B-02-06 | G1/8″*28 | G3/8″*19 | 10 | 13.5 | 31.5 | 22 |
| 1B-02-08 | G1/8″*28 | G1/2″*14 | 10 | 16 | 36 | 27 |
| 1B-04 | G1/4″*19 | G1/4″*19 | 12 | 12 | 30 | 19 |
| 1B-04-06 | G1/4″*19 | G3/8″*19 | 12 | 13.5 | 33.5 | 22 |
| 1B-04-08 | G1/4″*19 | G1/2″*14 | 12 | 16 | 38 | 27 |
| 1B-04-10 | G1/4″*19 | G5/8″*14 | 12 | 17.5 | 39.5 | 30 |
| 1B-06 | G3/8″*19 | G3/8″*19 | 13.5 | 13.5 | 33 | 22 |
| 1B-06-08 | G3/8″*19 | G1/2″*14 | 13.5 | 16 | 39.5 | 27 |
| 1B-06-10 | G3/8″*19 | G5/8″*14 | 13.5 | 17.5 | 42 | 30 |
| 1B-06-12 | G3/8″*19 | G3/4″*14 | 13.5 | 18.5 | 43 | 32 |
| 1B-08 | G1/2″*14 | G1/2″*14 | 16 | 16 | 42 | 27 |
| 1B-08-10 | G1/2″*14 | G5/8″*14 | 16 | 17.5 | 43.5 | 30 |
| 1B-08-12 | G1/2″*14 | G3/4″*14 | 16 | 18.5 | 45.5 | 32 |
| 1B-10 | G5/8″*14 | G5/8″*14 | 17.5 | 17.5 | 45 | 30 |
| 1B-10-12 | G5/8″*14 | G3/4″*14 | 17.5 | 18.5 | 47 | 32 |
| 1B-10-16 | G5/8″*14 | G1″*11 | 17.5 | 20.5 | 51.5 | 41 |
| 1B-12 | G3/4″*14 | G3/4″*14 | 18.5 | 18.5 | 48 | 32 |
| 1B-12-16 | G3/4″*14 | G1″*11 | 18.5 | 20.5 | 52.5 | 41 |
| 1B-12-20 | G3/4″*14 | G1.1/4″*11 | 18.5 | 20.5 | 56 | 50 |
| 1B-16 | G1″*11 | G1″*11 | 20.5 | 20.5 | 54 | 41 |
| 1B-16-20 | G1″*11 | G1.1/4″*11 | 20.5 | 20.5 | 58 | 50 |
| 1B-16-24 | G1″*11 | G1.1/2″*11 | 20.5 | 23 | 60.5 | 55 |
| 1B-20 | G1.1/4″*11 | G1.1/4″*11 | 20.5 | 20.5 | 58 | 50 |
| 1B-20-24 | G1.1/4″*11 | G1.1/2″*11 | 20.5 | 23 | 60.5 | 55 |
| 1B-24 | G1.1/2″*11 | G1.1/2″*11 | 23 | 23 | 63 | 55 |
| 1B-24-32 | G1.1/2″*11 | G2″*11 | 23 | 25.5 | 66.5 | 70 |
| 1B-32 | G2″*11 | G2″*11 | 25.5 | 25.5 | 68 | 70 |
| 1B-40 | G2.1/2″*11 | G2.1/2″*11 | 32 | 32 | 81 | 90 |
| 1B-48 | G3″*11 | G3″*11 | 36 | 36 | 92 | 100 |
