14211

ORFS MALE O-RING SEAL

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 14211

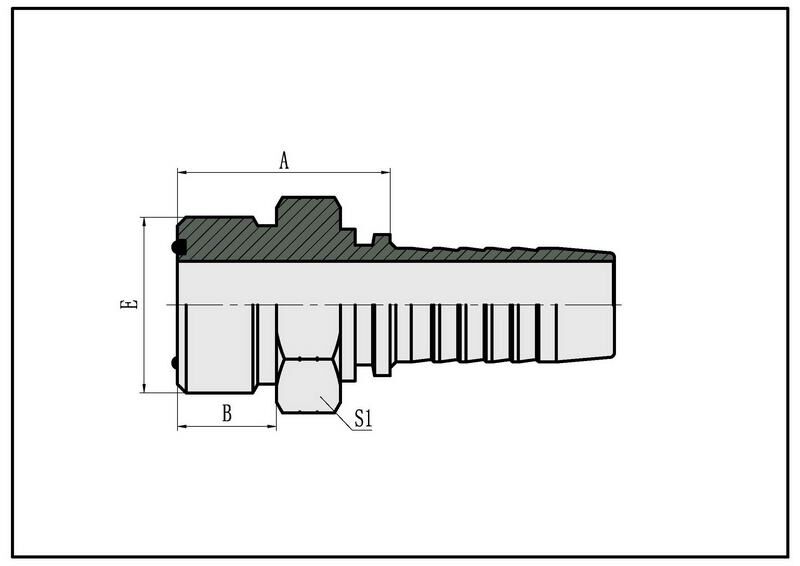

PART NO. THREAD E HOSE BORE DIMENSIONS
Braided hose Spiral hose DN DASH O-RING A B S1
14211-04-04 14212-04-04 9/16″*18 6 04 O011 22.3 9.8 17
14211-06-04 14212-06-04 11/16″*16 6 04 O012 24 11.2 19
14211-06-06 14212-06-06 11/16″*16 10 06 O012 24 11.2 19
14211-08-06 14212-08-06 13/16″*16 10 06 O014 27.5 12.8 22
14211-08-08 14212-08-08 13/16″*16 12 08 O014 28.5 12.8 22
14211-08-10 14212-08-10 13/16″*16 16 10 O014 28.5 12.8 22
14211-10-08 14212-10-08 1*14 12 08 O016 32.5 15.5 27
14211-10-10 14212-10-10 1*14 16 10 O016 34 15.5 27
14211-12-08 14212-12-08 1.3/16″*12 12 08 O018 35.5 17 32
14211-12-10 14212-12-10 1.3/16″*12 16 10 O018 36.5 17 32
14211-12-12 14212-12-12 1.3/16″*12 20 12 O018 36.5 17 32
14211-16-12 14212-16-12 1.7/16″*12 20 12 O021 37 17.5 38
14211-16-16 14212-16-16 1.7/16″*12 25 16 O021 38.5 17.5 38
14211-20-20 14212-20-20 1.11/16″*12 32 20 O025 41.5 17.5 46
14211-24-24 14212-24-24 2″*13 40 24 O029 43.5 17.5 55

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
