10811LY

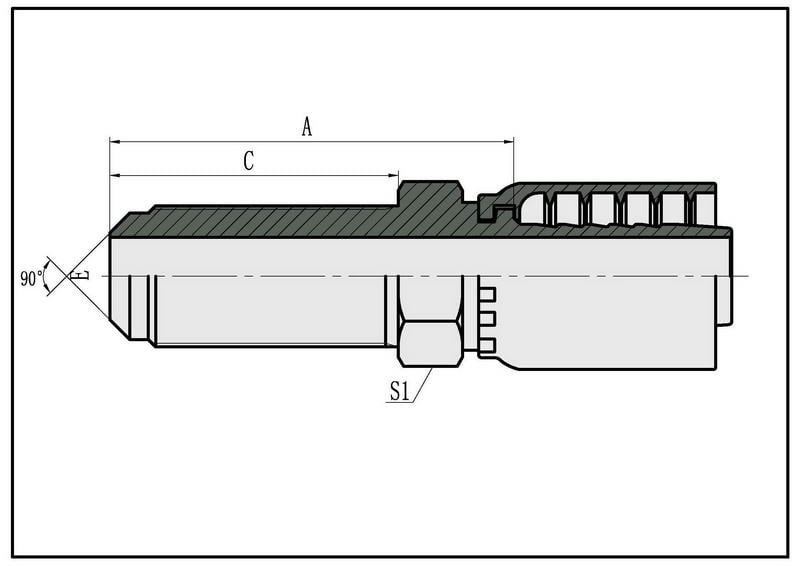

METRIC MALE 90°CONE BULKHEAD

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 10811LY

 PART NO. E HOSE   BORE   DIMENSIONS
BRAIDED HOSE SPIRAL HOSE THREAD E DN DASH A C S1
10811LY-12-04Z M12x1.5 6 4 46 34 17
10811LY-12-04AZ M12x1 6 4 44.5 32.5 17
10811LY-14-04Z M14x1.5 6 4 46 34 19
10811LY-14-06Z 10812LY-14-06Z M14x1.5 10 6 46.5 34 19
10811LY-16-04Z M16x1.5 6 4 46.5 34 22
10811LY-16-06Z 10812LY-16-06Z M16x1.5 10 6 46.5 34 22
10811LY-20-06Z 10812LY-20-06Z M20x1.5 10 6 57 40 27
10811LY-20-08Z 10812LY-20-08Z M20x1.5 12 8 57.5 40 27
10811LY-22-08Z 10812LY-22-08Z M22x1.5 12 8 62.5 45 27
Note:
1. The dimension before “/”for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose.
