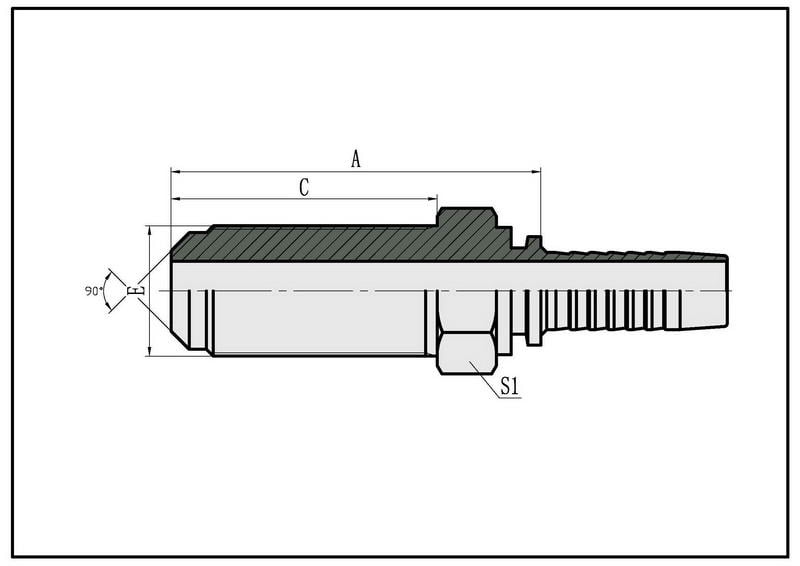

10811L

METRIC MALE 90° CONE

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 10811L

PART NO. THREAD E HOSE BORE DIMENSIONS
Braided hose Spiral hose DN DASH A C H S2
10811L-12-04 10812L-12-04 M12*1.5 6 04 46 34 17 17
10811L-12-04A 10812L-12-04A M12*1 6 04 44.5 32.5 18 17
10811L-14-04 10812L-14-04 M14*1.5 6 04 46 34 19 19
10811L-14-06 10812L-14-06 M14*1.5 10 06 46.5 34 17 19
10811L-16-04 10812L-16-04 M16*1.5 6 04 46.5 34 19 22
10811L-16-06 10812L-16-06 M16*1.5 10 06 46.5 34 22 22
10811L-20-06 10812L-20-06 M20*1.5 10 06 57 40 27 27
10811L-20-08 10812L-20-08 M20*1.5 12 08 57.5 40 27 27
10811L-22-08 10812L-22-08 M22*1.5 12 08 62.5 45 27 27

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
